Shift Mechanism





A/T CONTROL SYSTEM


Shift Mechanism


CONSTRUCTION











FUNCTION OF CLUTCH AND BRAKE

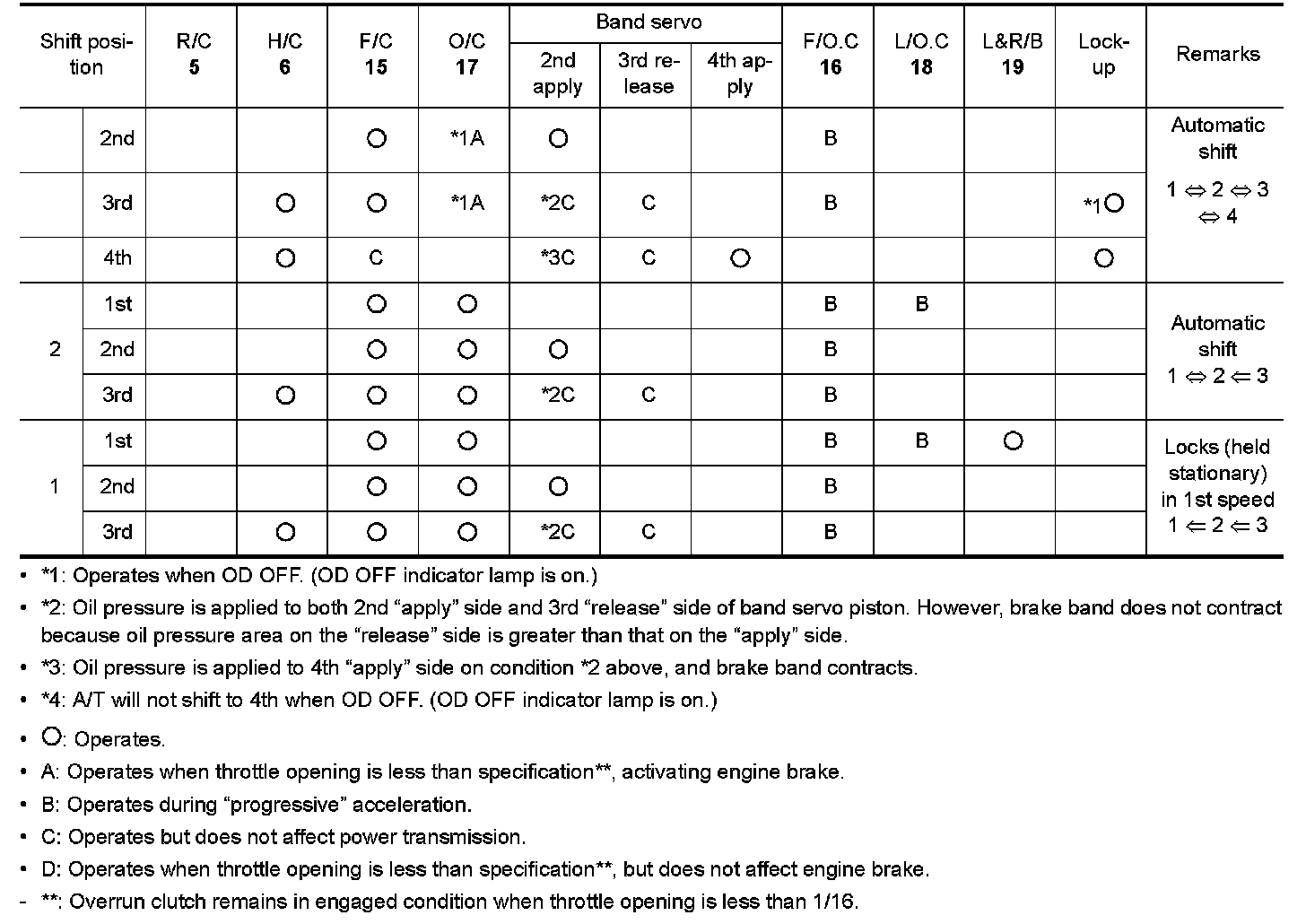

CLUTCH AND BAND CHART











POWER TRANSMISSION

"N" and "P" Positions
- "N" position
Power from the input shaft is not transmitted to the output shaft because the clutches do not operate.
- "P" position
Similar to the "N" position, the clutches do not operate. The parking pawl engages with the parking gear to mechanically hold the output shaft so that the power train is locked.

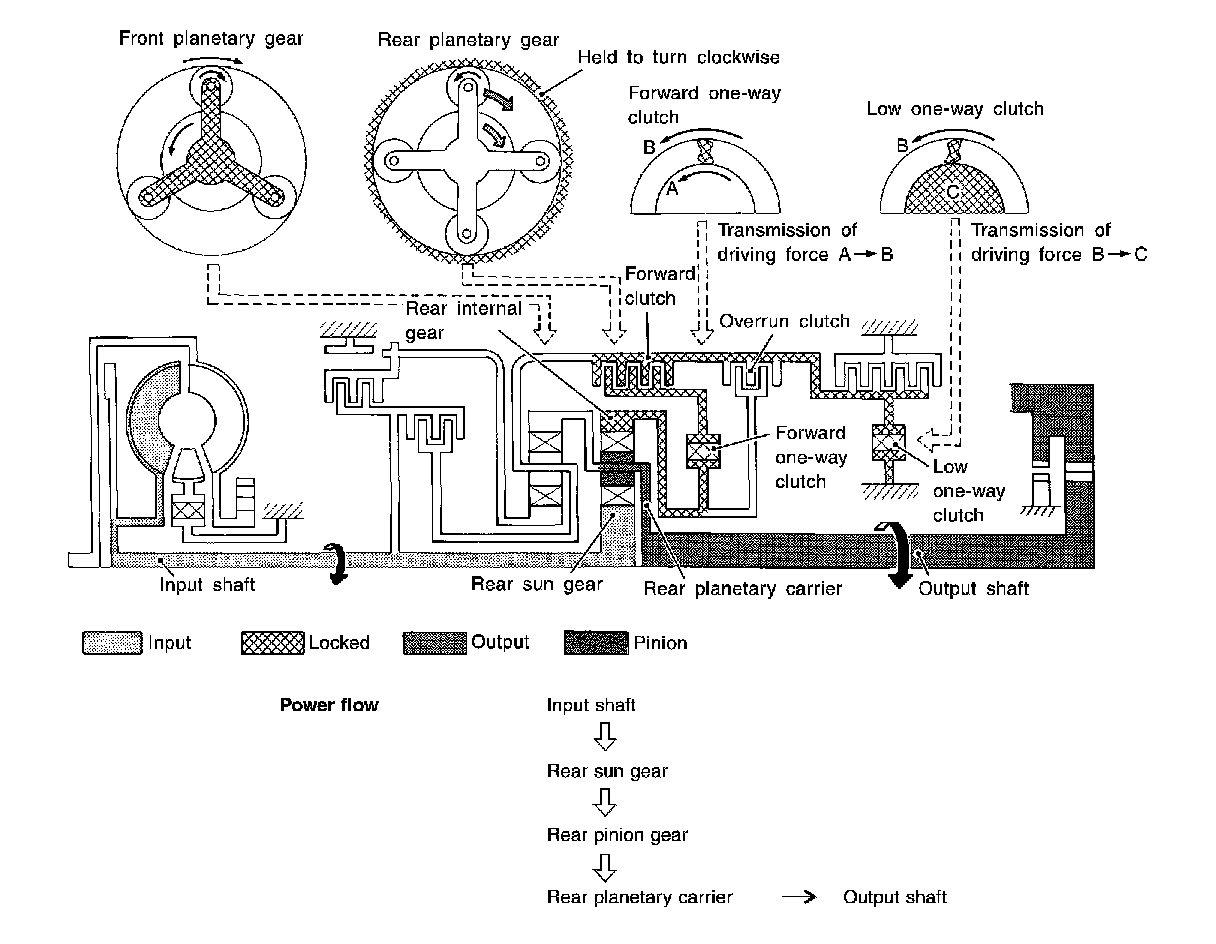

"11" Position

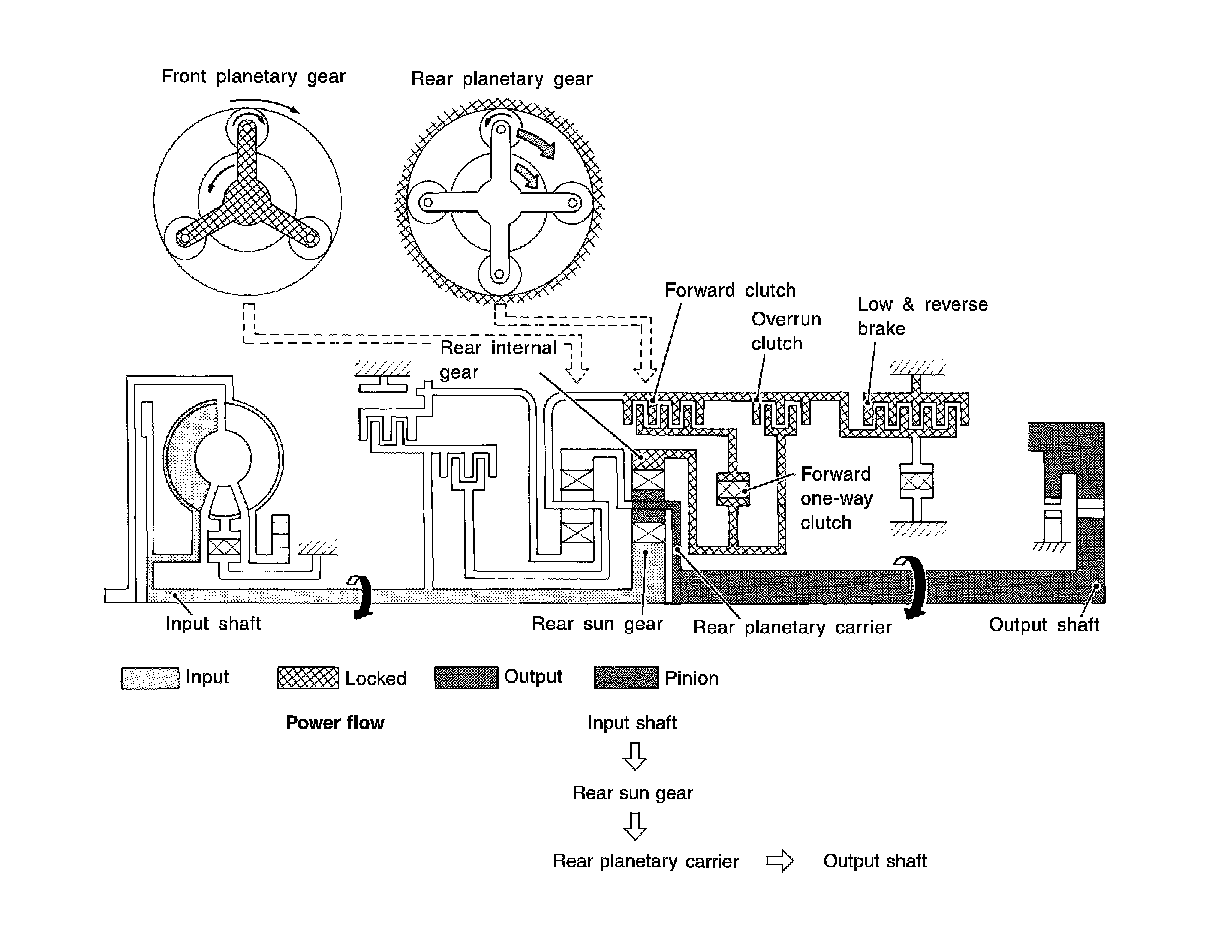

"D1" and "21" Positions

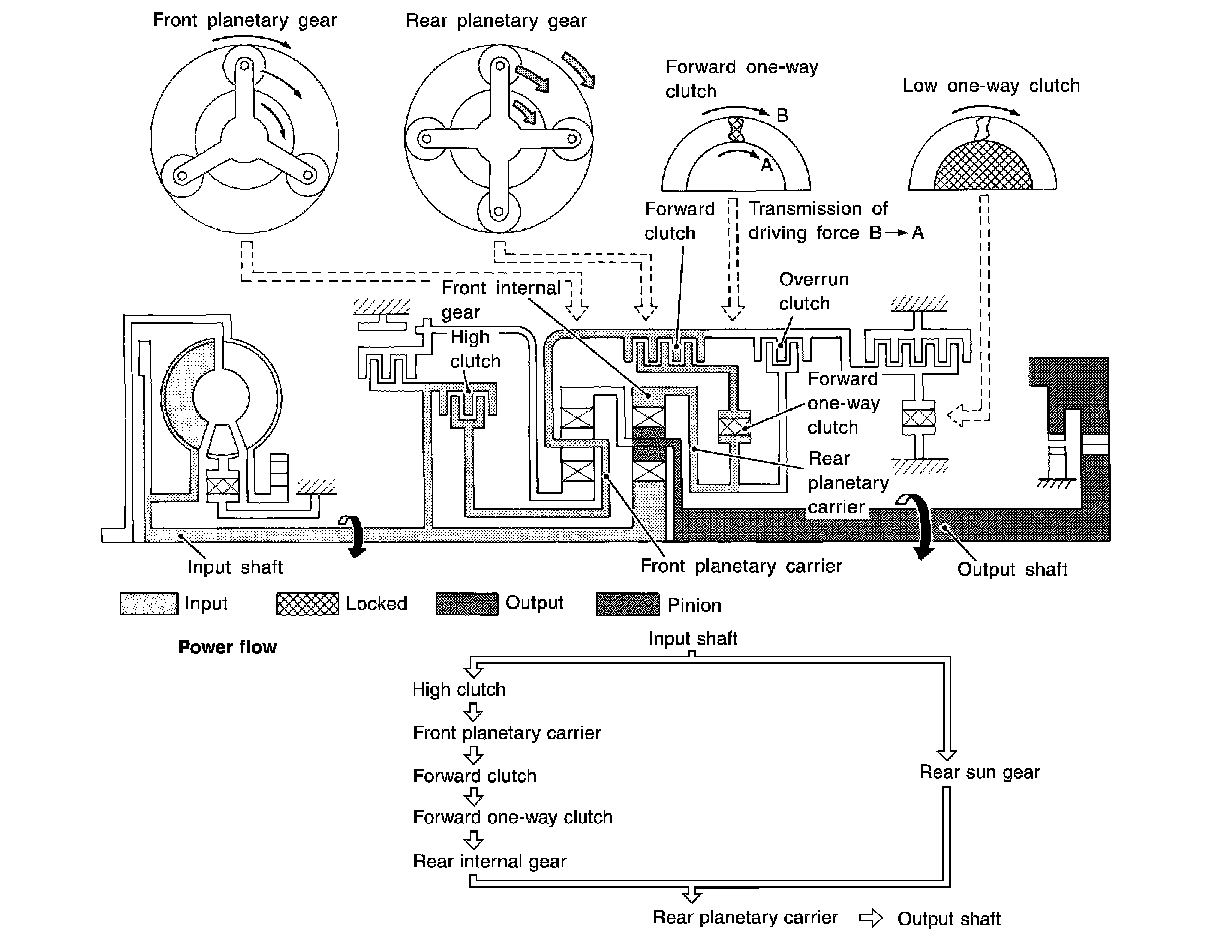

"D2", "22" and "12" Positions

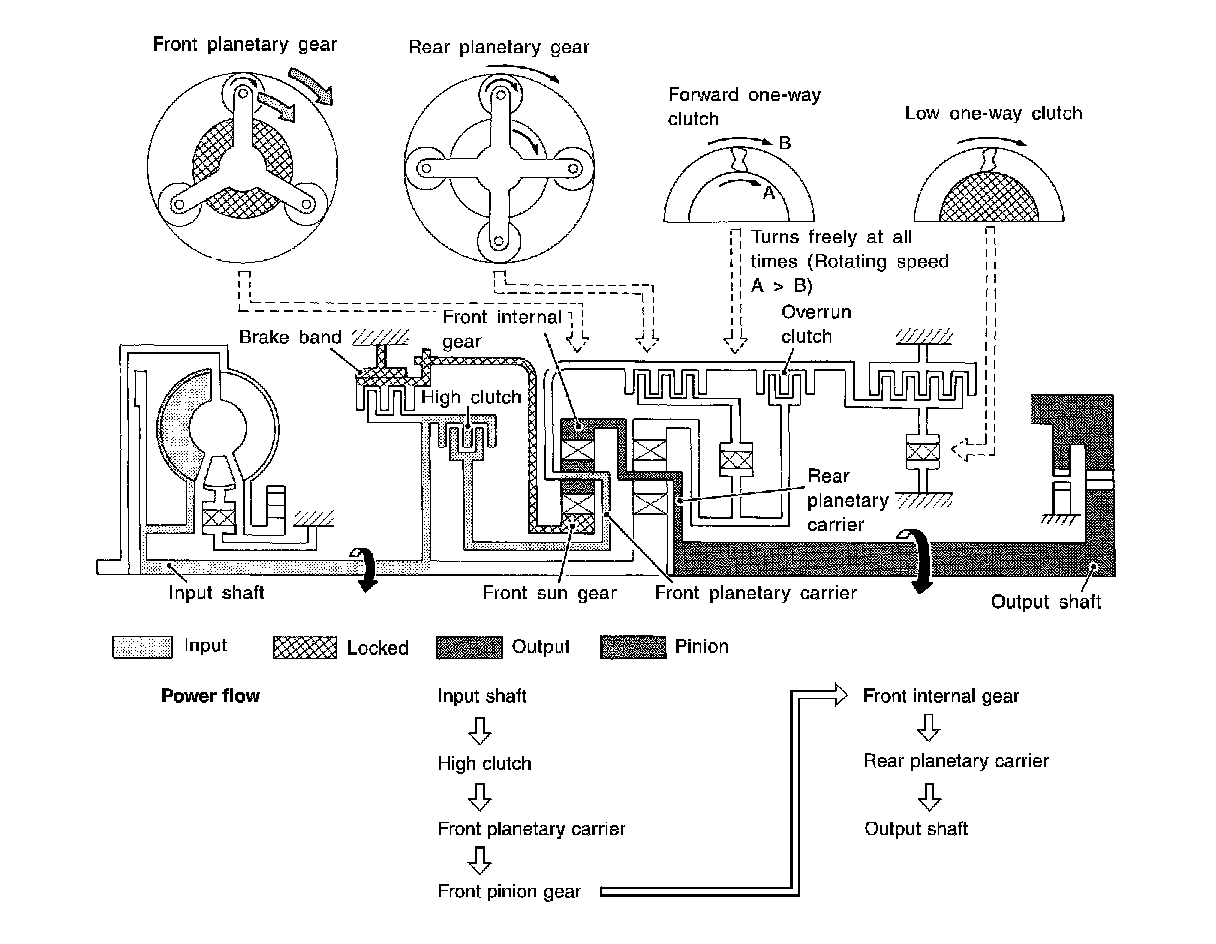

"D3", "23" and "13" Positions

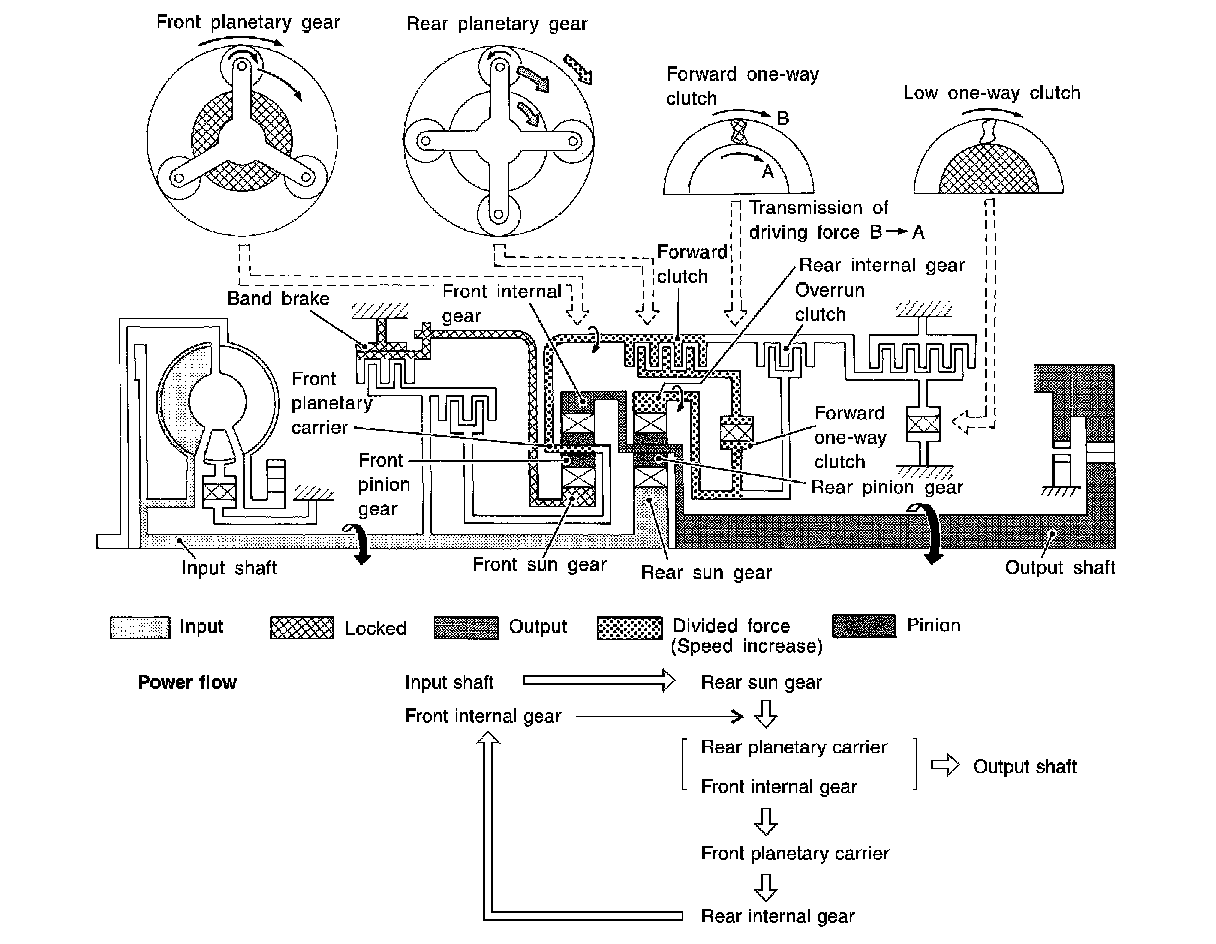

"D4" (OD) Position

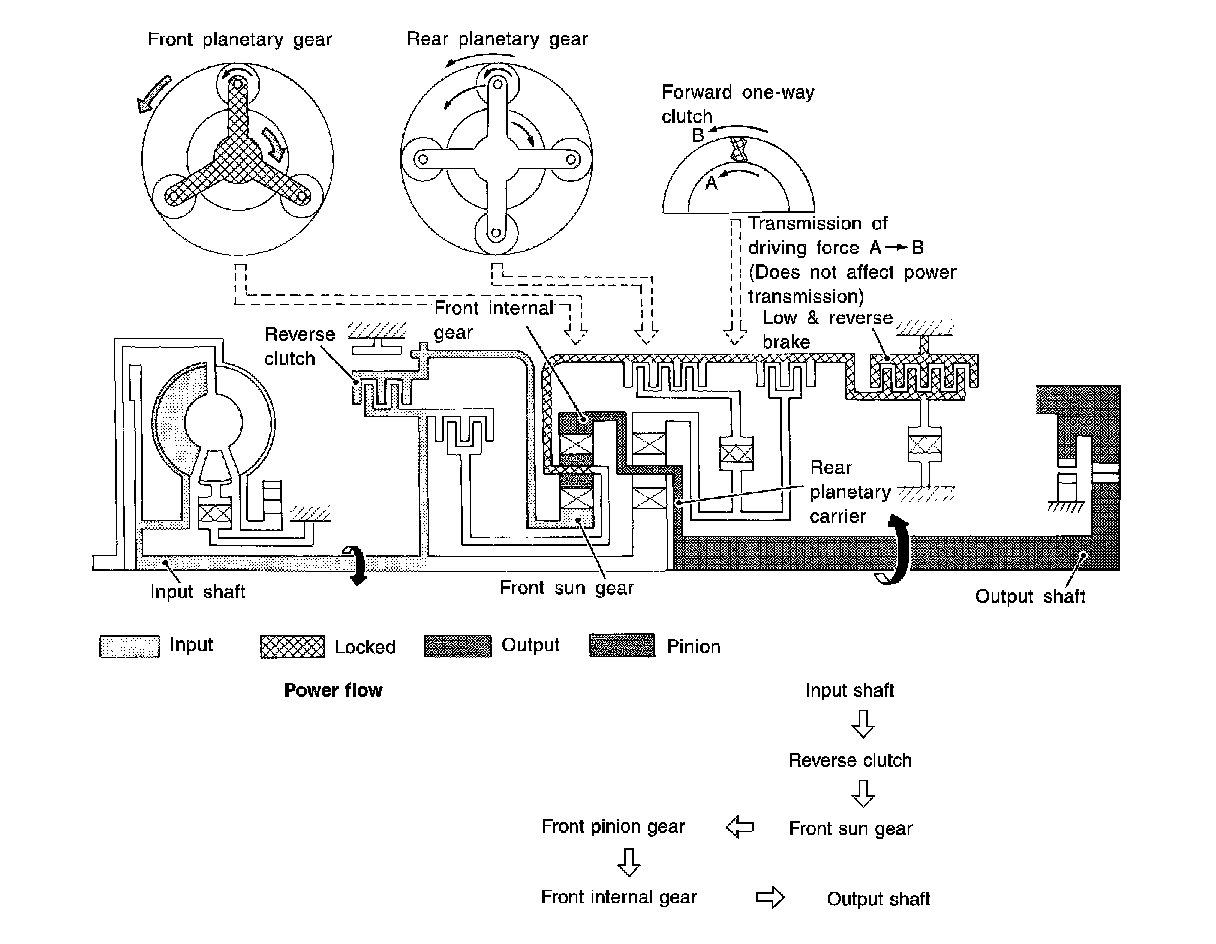

"R" Position
