Trunk Open Function

TRUNK OPEN FUNCTION

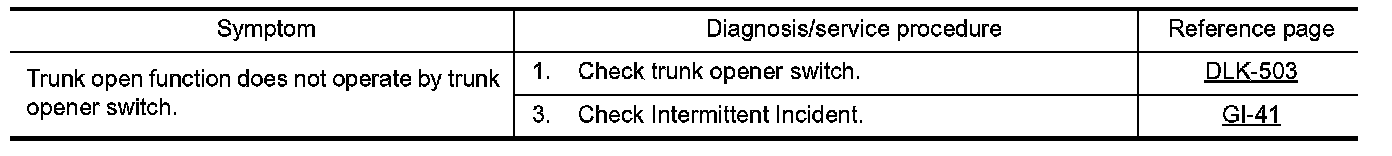

Symptom Table


TRUNK OPEN FUNCTION MALFUNCTION

NOTE:
- Before performing the diagnosis in the following table, check "WORK FLOW". Without Intelligent Key.
- Check that vehicle is under the condition shown in "Conditions of vehicle" before starting diagnosis, and check each symptom.
- If the following symptoms are detected, check systems shown in the "Diagnosis/service procedure" column in this order.
Conditions of Vehicle (Operating Conditions)
- Keyfob is out of key slot.
- All doors are closed.
