With Intelligent Key




RADIATOR CORE SUPPORT

Removal and Installation












REMOVAL

1.Remove front bumper supports. Sedan.
2.Remove front combination lamps (LH/RH). Removal and Replacement.
3.Remove air duct. Service and Repair (QR25DE) or Service and Repair (VQ35DE).
4.Remove the radiator cooling fans. Removal and Installation (QR25DE) or Removal and Installation (VQ35DE).
5.Remove the radiator. Removal and Installation (QR25DE) or Removal and Installation (VQ35DE).
6.Remove the hood lock. With Intelligent Key.
7.Remove ambient sensor. Service and Repair.
8.Remove crash zone sensor. Crash Zone Sensor.
9.Remove air guides (LH/RH).
10.Remove power steering oil cooler.
(17 inch tire) or (18 inch tire).
11.Remove the harness clips from the radiator core support assembly, and position the harness aside.
12.Remove the hood support rod.

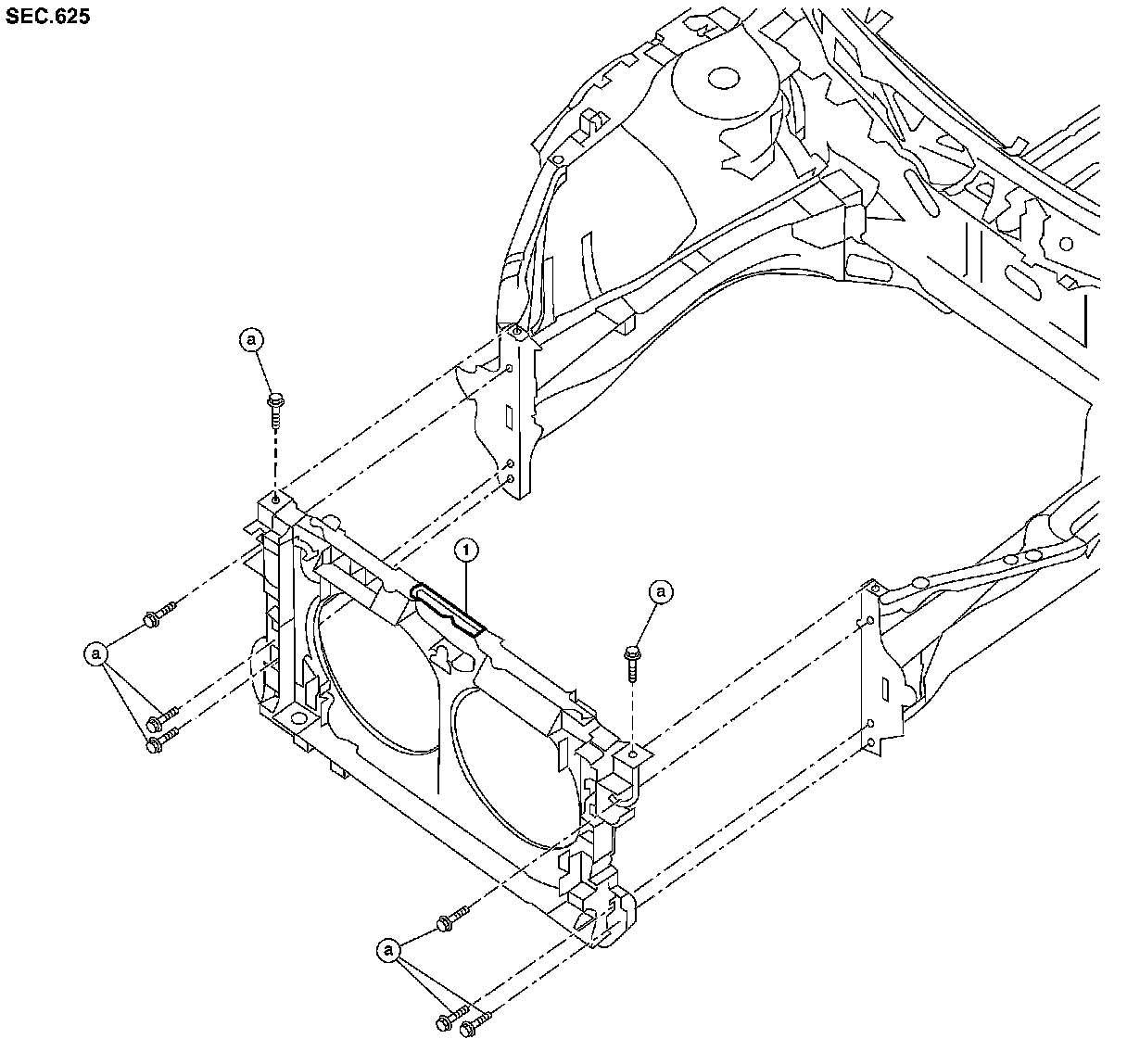

13.Remove the bolts and the radiator core support.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:
- After installing, perform hood fitting adjustment. With Intelligent Key.
- After adjusting, apply touch-up paint (the body color) to the radiator core support bolts.
