ASCD INDICATOR

Description

The ASCD operation status is indicated by two indicators, (CRUISE and SET on the information display) on the combination meter.

CRUISE indicator is displayed to indicate that ASCD system is ready for operation when MAIN switch on
ASCD steering switch is turned ON.
SET indicator is displayed when the following conditions are met.
- CRUISE indicator is displayed.
- SET/COAST switch on ASCD steering switch is turned ON while vehicle speed is within the range of ASCD setting.
SET indicator is displayed during ASCD control.
System Description for the ASCD function.


Component Function Check


1. ASCD INDICATOR FUNCTION

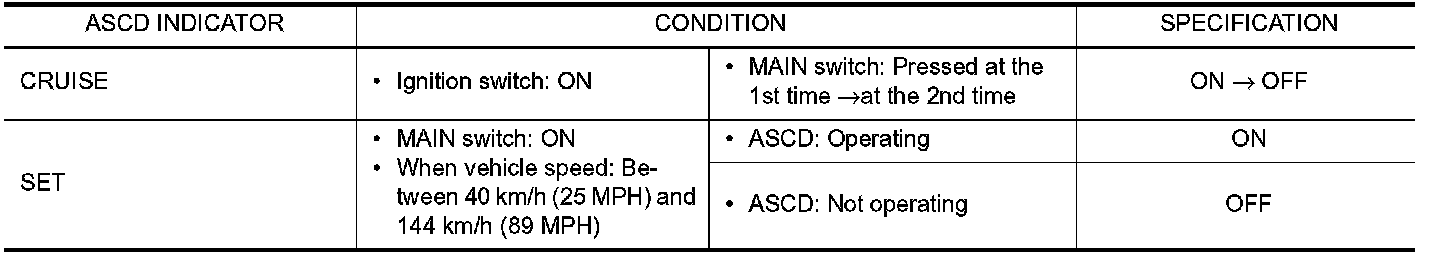

Check ASCD indicator under the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Go to "Diagnosis Procedure".


Diagnosis Procedure


1. CHECK DTC

Check that DTC UXXXX is not displayed.
Is the inspection result normal?
YES- GO TO 2.
NO- Perform trouble diagnosis for DTC UXXXX.

2. CHECK COMBINATION METER OPERATION

CONSULT Function (Meter/M&A).
Is the inspection result normal?
YES- GO TO 3.
NO- Check combination meter circuit. Refer to System Diagram.

3. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END
