Heater Core: Service and Repair




HEATER CORE

Removal and Installation

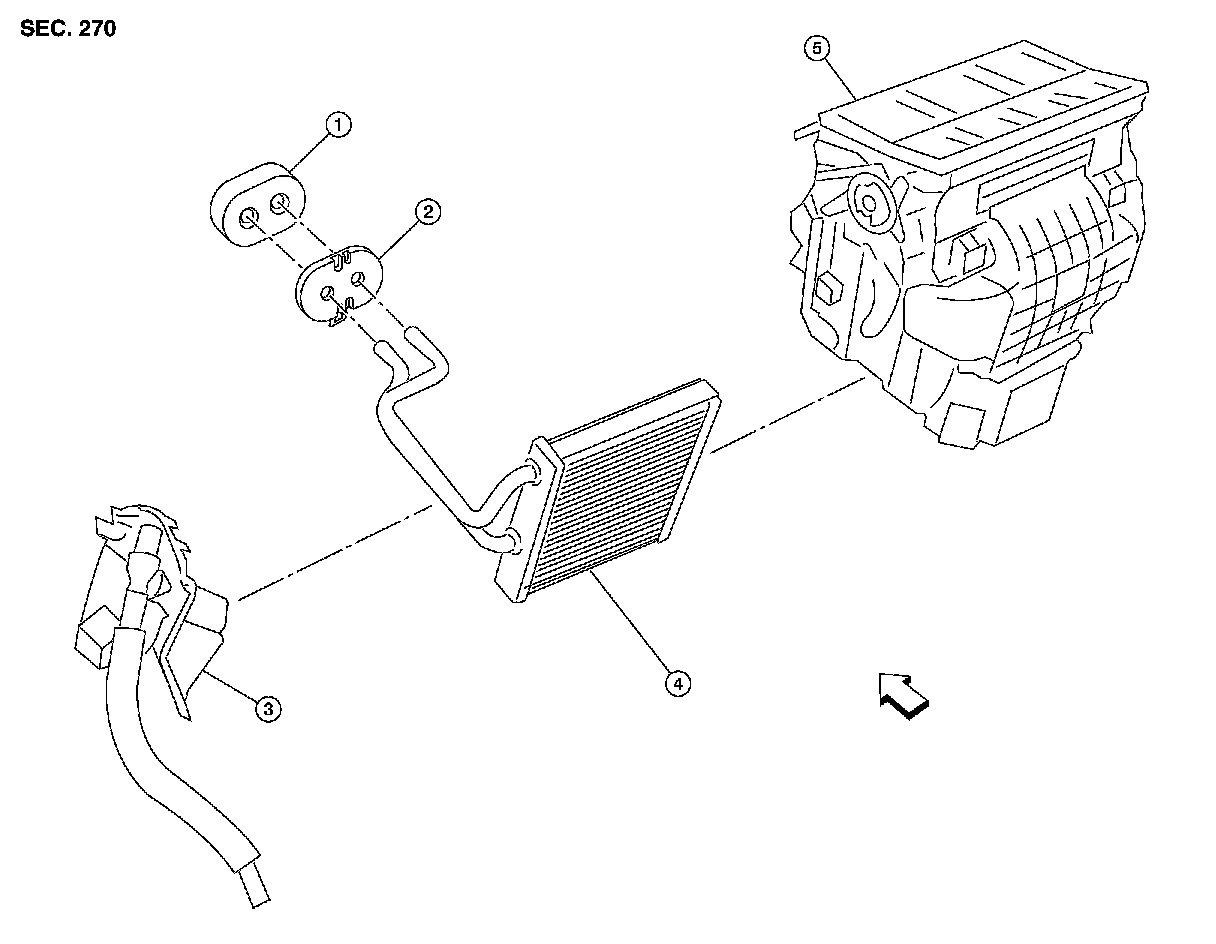

COMPONENTS












REMOVAL

1.Remove the heater and cooling unit assembly. Service and Repair.
2.Remove the heater grommet, heater pipe support and heater pipe cover.
3.Remove the heater and cooling unit foot duct LH.
4.Remove the heater core.

INSTALLATION

Installation is in the reverse order of removal.
- Make sure that the aspirator hose is securely attached to the aspirator on the heater and cooling unit foot duct LH.
