Solar Sensor: Service and Repair

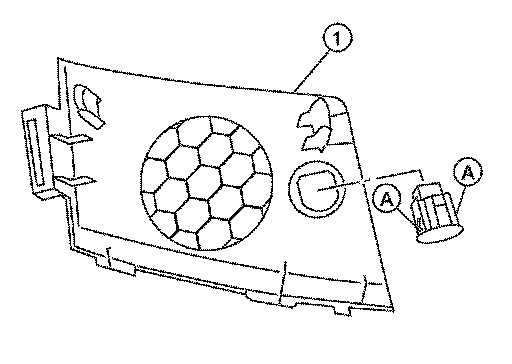

SUNLOAD SENSORRemoval and Installation REMOVAL 1.Remove the front LH speaker grille (1).
Base Audio.
2.Disconnect the sunload sensor electrical connector.
3.Release the sunload sensor tabs (A) to remove it from the front
LH speaker grille (1).
INSTALLATION Installation is in the reverse order of removal.
