Connecting Rod, Engine




Tighten the connecting rod bolts using Tool as follows:

Step 1: 29.4 Nm (3.0 kg-m, 22 ft-lb)
Step 2: 0 Nm
Step 3: 19.6 Nm (2.0 kg-m, 14 lb-ft)
Step 4: Rotate bolts 90� + 0.5�

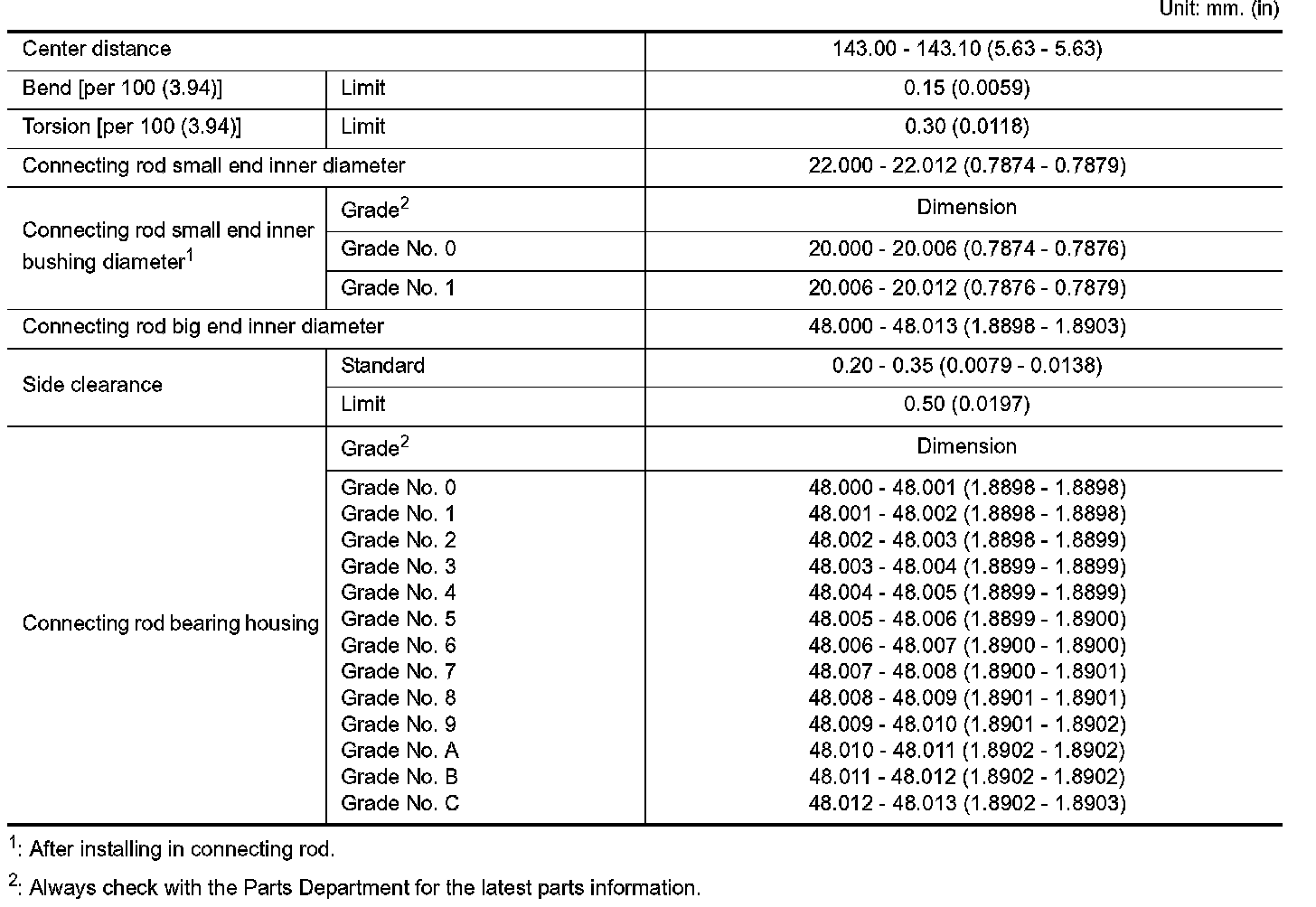

CONNECTING ROD
