Intake Manifold

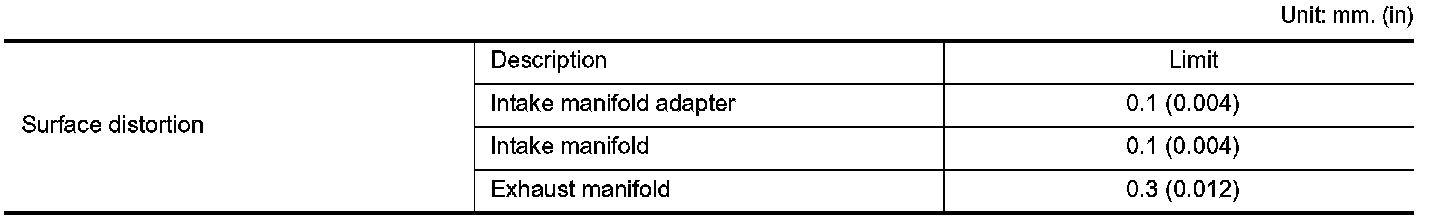

SERVICE DATA AND SPECIFICATIONS (SDS)

INTAKE MANIFOLD AND EXHAUST MANIFOLD

Unit: mm. (in)

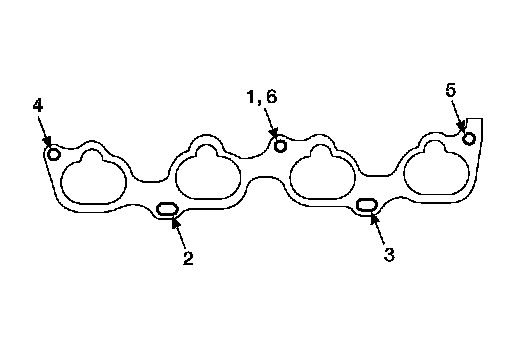

Tightening Intake Manifold Bolts and Nuts

Tighten in numerical order as shown.

Intake manifold 19.6 N.m (2.0 kg-m, 14 ft-lb)
