Timing Cover

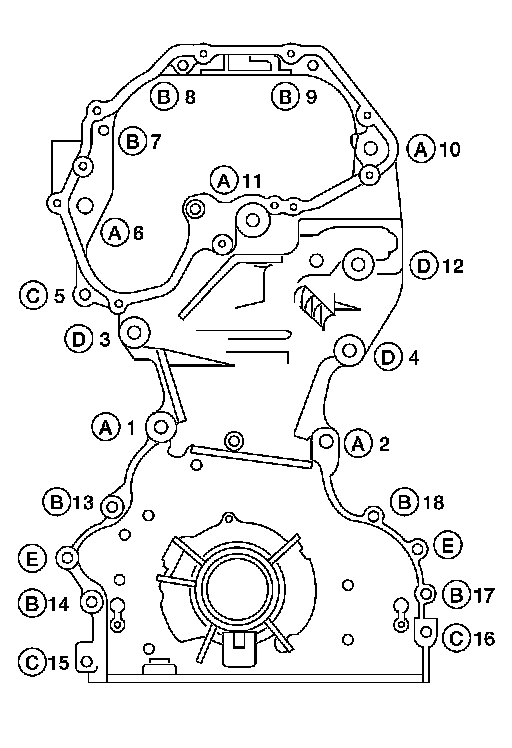

Tighten front cover bolts in the numerical order as shown.
After all bolts are tightened, retighten them to the specified torque.
Front cover bolts
Bolts (A):
49 Nm (5.0 kg-m, 36 ft-lb)
Bolts (B):
12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts (C):
12.7 Nm (1.3 kg-m, 9 ft-lb)
Bolts (D):
49 Nm (5.0 kg-m, 36 ft-lb)
(E)
Dowel pins
Front cover
12.5 Nm (1.3 kg-m, 9 ft-lb)
