With Intelligent Key
KEY SLOTRemoval and Installation REMOVAL 1.Remove the instrument lower panel LH.
Instrument Lower Panel LH.

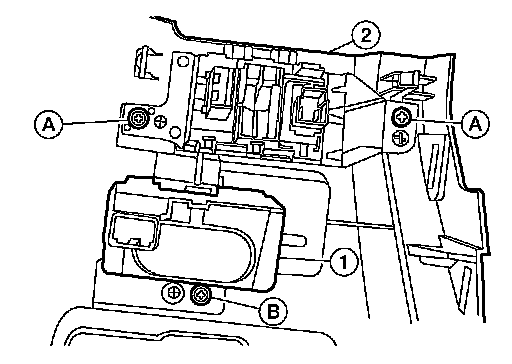

2.Remove the switch assembly screws (A), remove the key slot screw (B), and then remove key slot (1) from instrument lower panel LH (2).
INSTALLATION Installation is in the reverse order of removal.
