Without Intelligent Key

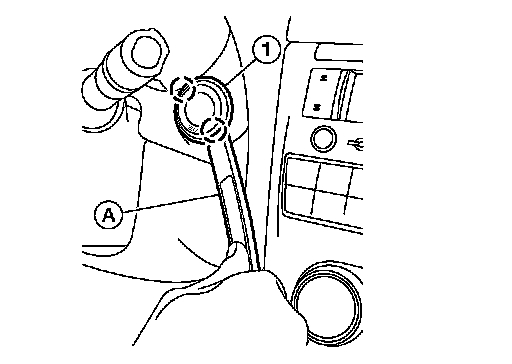

PUSH BUTTON IGNITION SWITCHRemoval and Installation REMOVAL 1.Remove the push button
ignition switch (1) from cluster lid A using suitable tool (A).
- : Pawl
2.Disconnect the electrical harness connector and remove the push button
ignition switch.
INSTALLATION Installation is in the reverse order of removal.
