Steering Control Module: Service and Repair
EPS CONTROL UNITRemoval and Installation REMOVAL 1.Remove audio or NAVI unit.
Base Audio (Base audio),
Bose Audio Without Navigation (BOSE without NAVI),
Service and Repair (BOSE with NAVI).

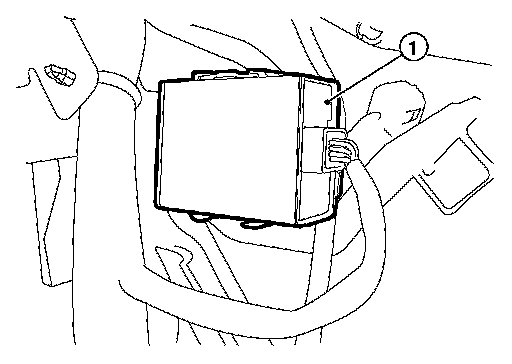

2.Remove power steering control unit (1).
3.Disconnect power steering control unit connector.
STC
INSTALLATION Installation is in the reverse order of removal.
