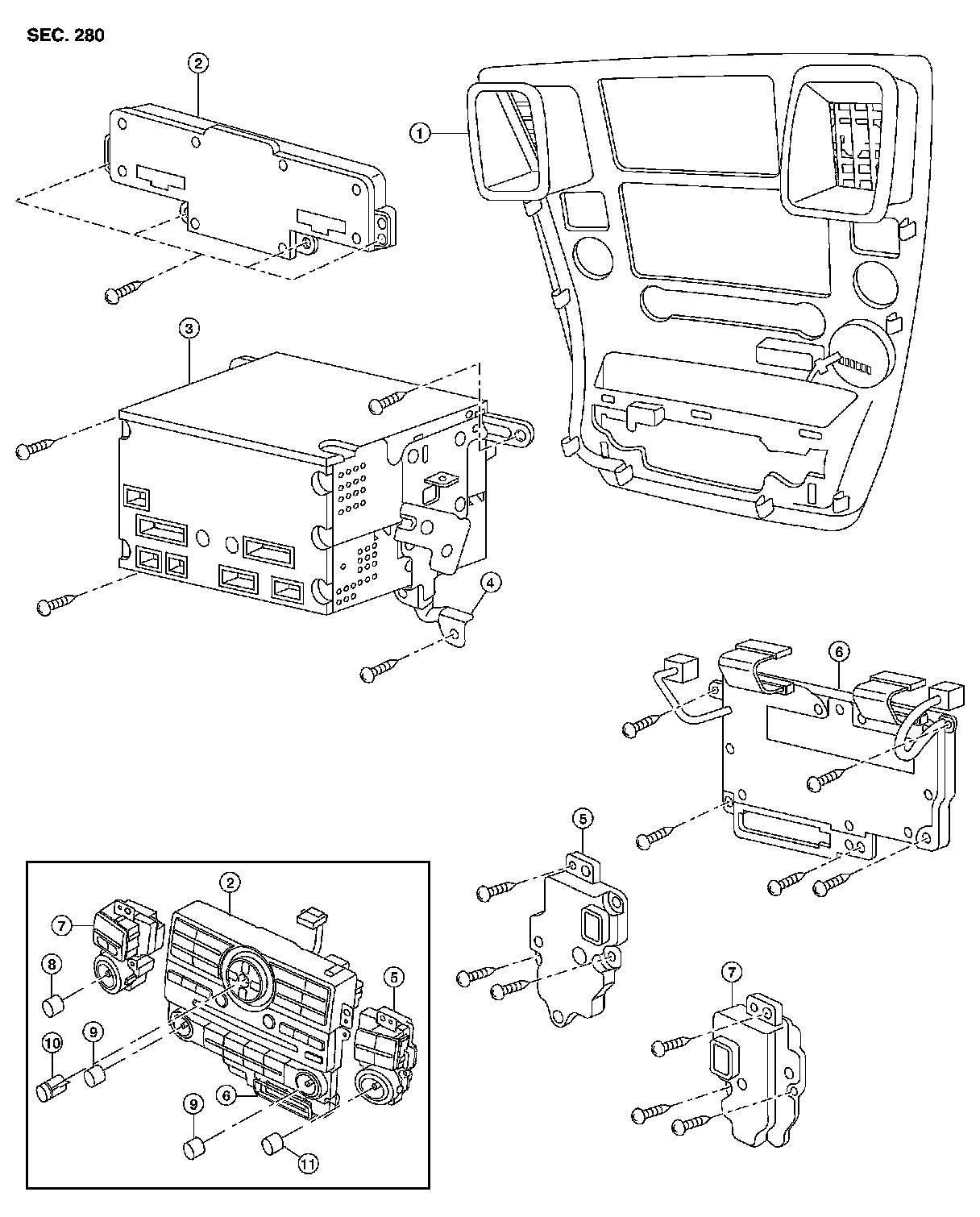

AV CONTROL UNIT

Removal and Installation












CAUTION:
Only remove and replace the A/C or AV switch assembly knobs if damaged or missing. The knobs must not be removed from switches when removing and installing the A/C or AV switch assembly to prevent damage to the switch assembly.

REMOVAL

1.Remove the cluster lid C. Removal And Installation.
2.Remove the AV control unit screws, using a power tool.
3.Remove the AV control unit.
a.Remove the A/C and AV switch assemblies as necessary.

INSTALLATION

Installation is in the reverse order of removal.
