Intelligent Key Unit
DIAGNOSIS SYSTEM (INTELLIGENT KEY UNIT)CONSULT Function (INTELLIGENT KEY) APPLICATION ITEM CONSULT performs the following functions via CAN communication with Intelligent Key unit.
SELF-DIAG RESULT Testing and Inspection.

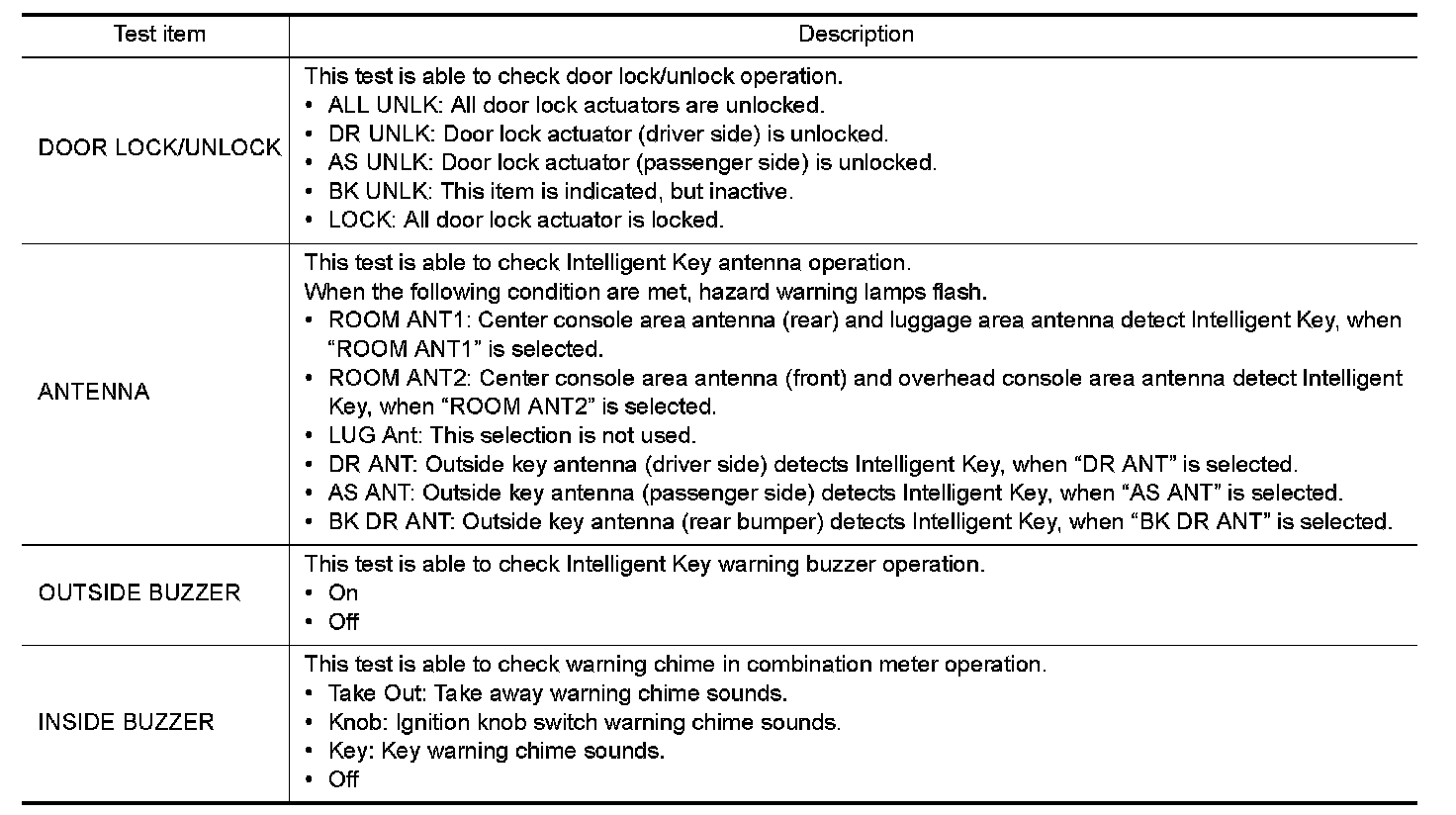

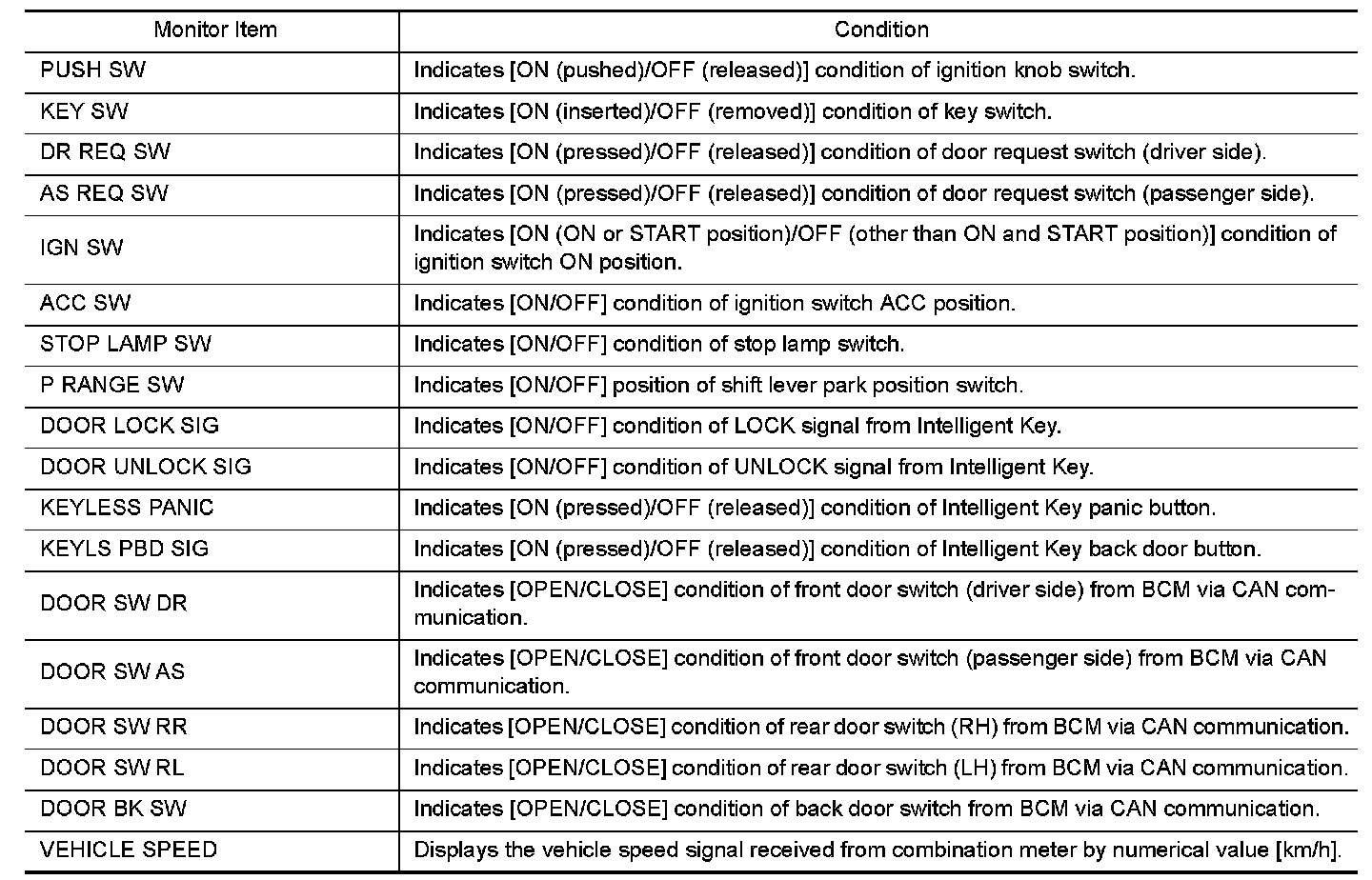

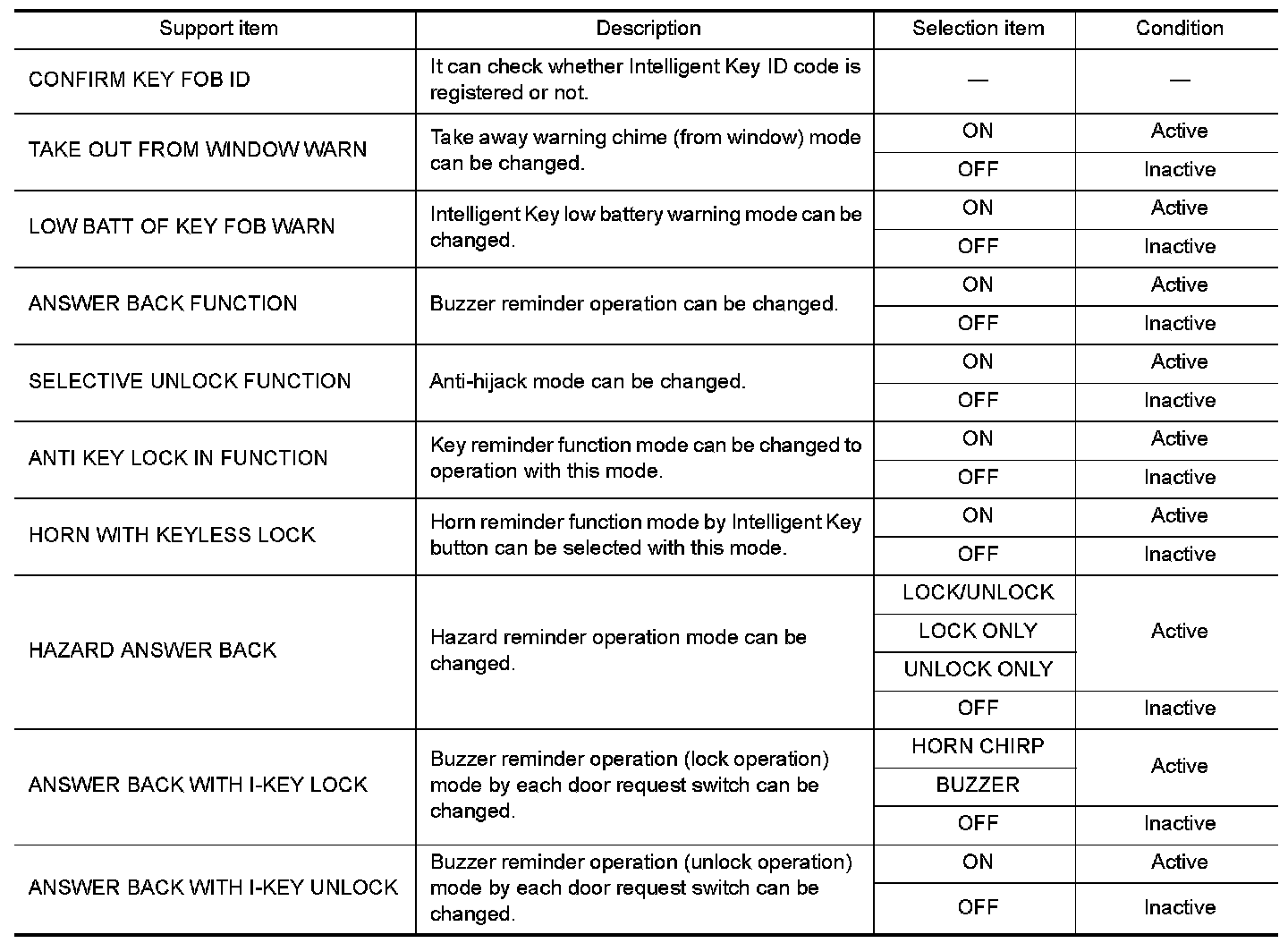

DATA MONITOR ACTIVE TEST WORK SUPPORT
