Alignment

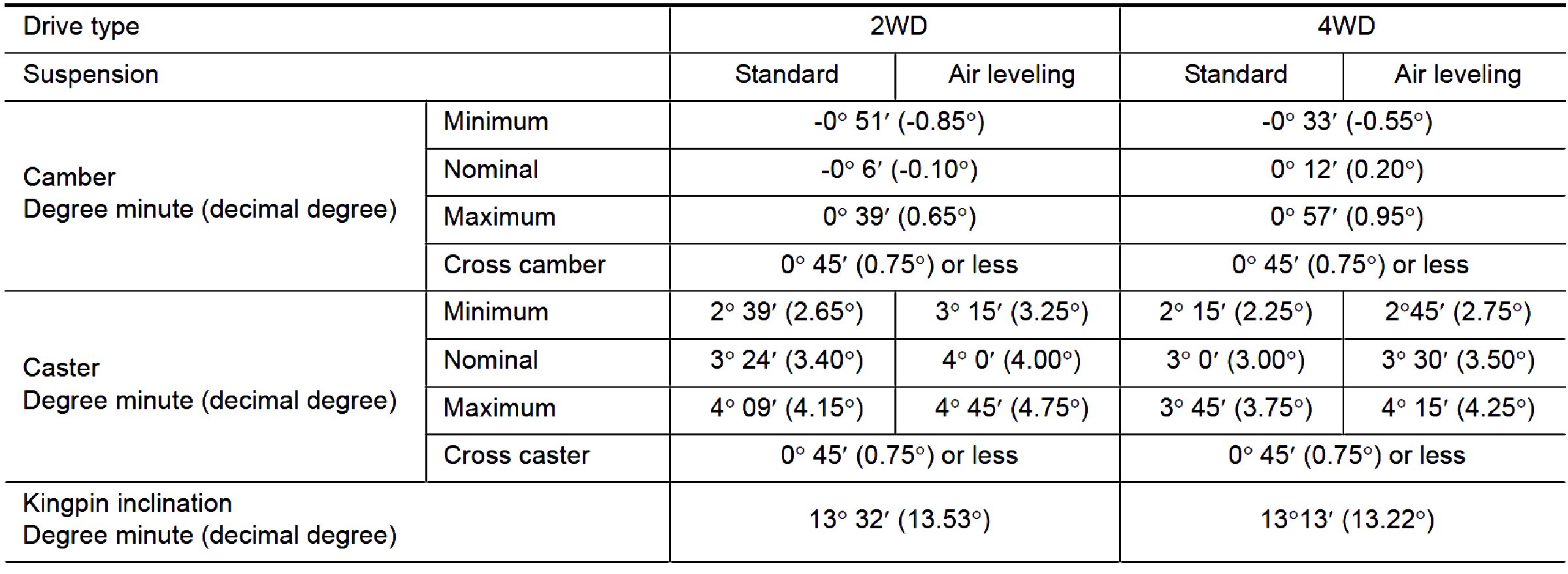

Wheel Alignment SpecificationsFront Wheel Alignment (Unladen*1):

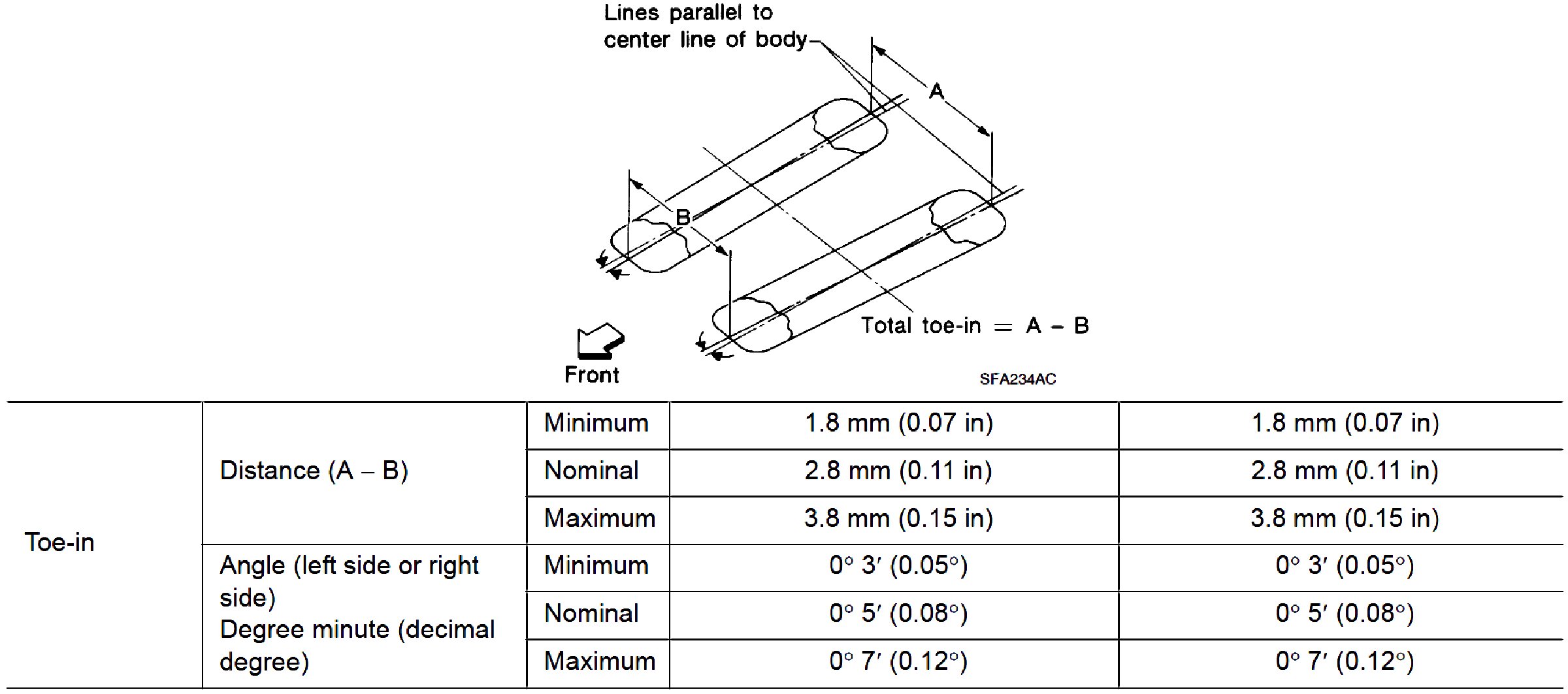

Front Toe-in:

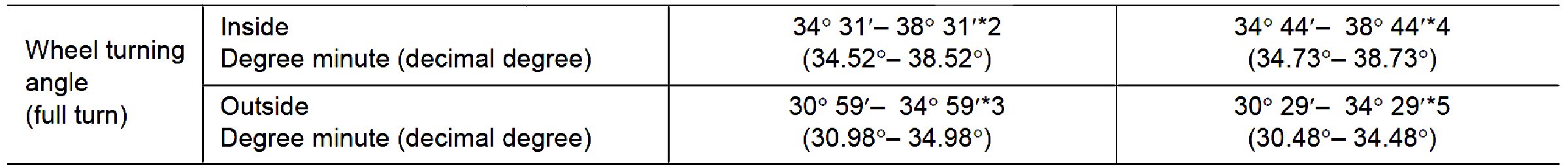

Wheel Turning Angle:

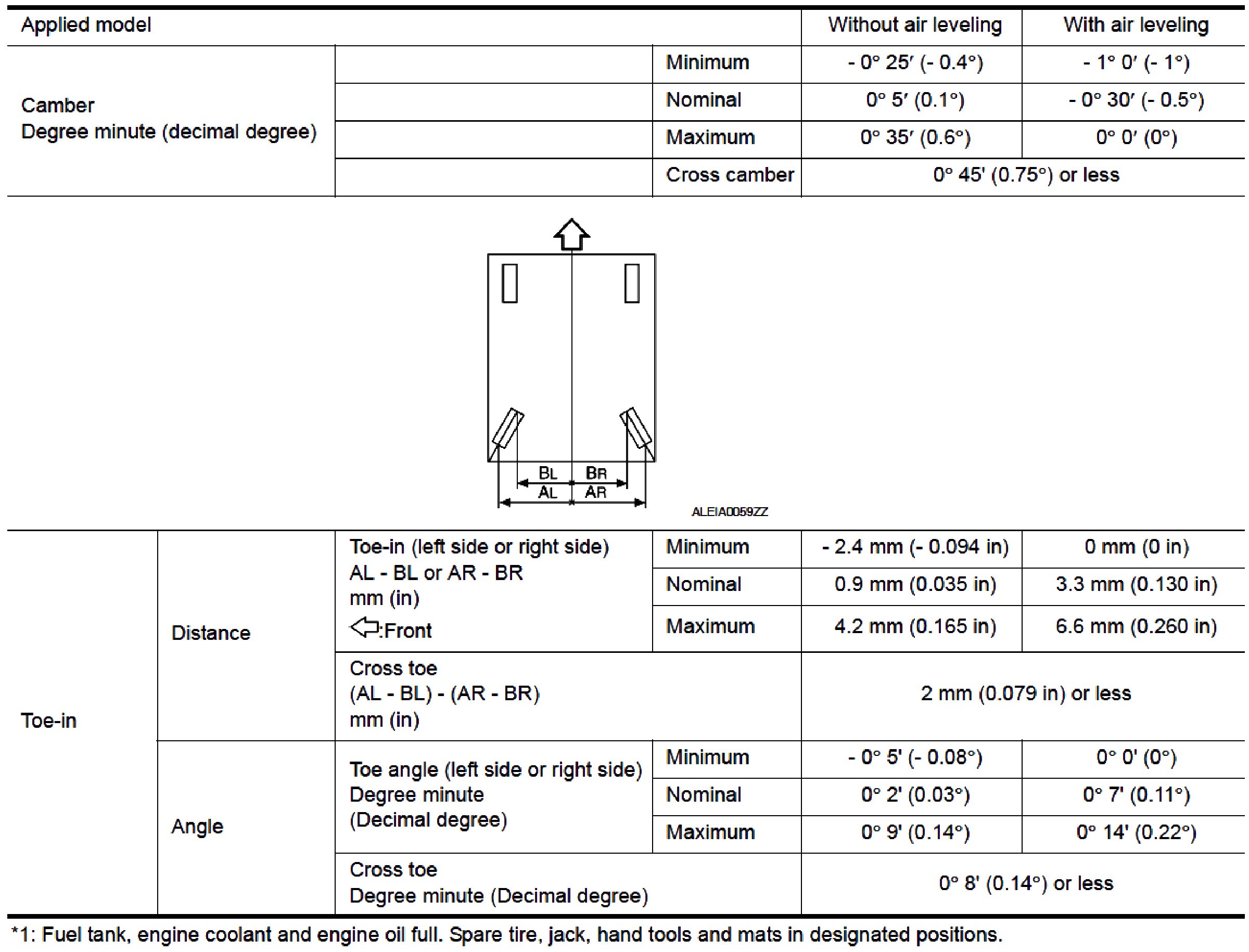

Rear Wheel Alignment (Unladen *1):

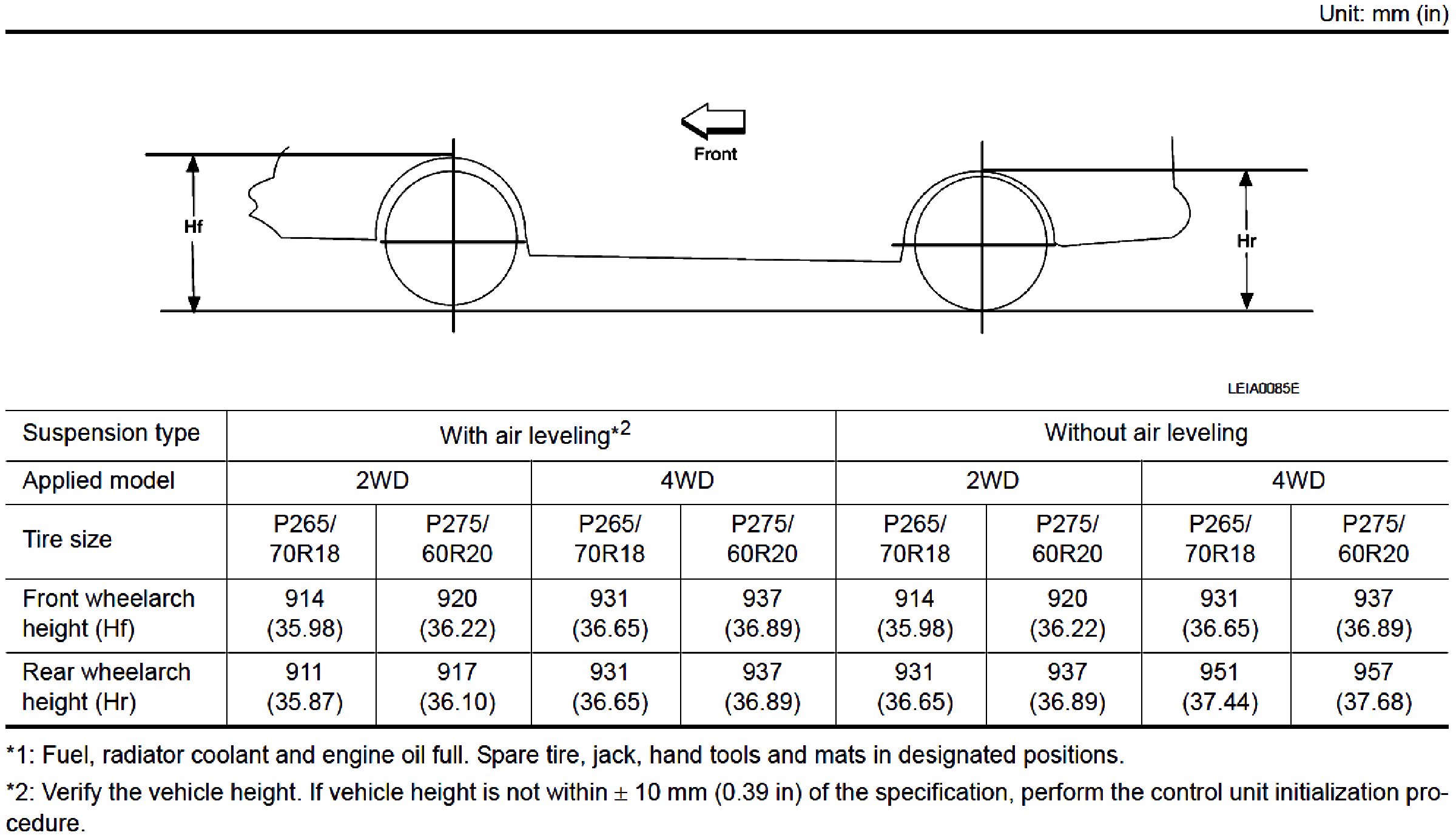

Wheel Arch Height (Unladen *1):
*1:
Fuel, radiator coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
*2:
Target value 37� 31' (37.52�)
*3:
Target value 33� 59' (33.98�)
*4:
Target value 37� 44' (37.73�)
*5:
Target value 33� 29' (33.48�)
