Removal And Installation
A/C CONTROL (A/C AUTO AMP.)Removal and Installation REMOVAL 1.Remove A/C finisher.

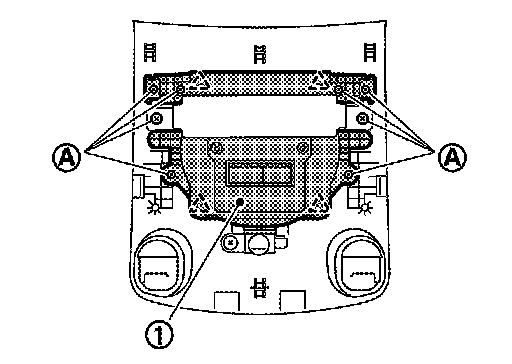

Exploded View.
2.Remove mounting screws (A).
Broken triangle indicates : Pawl
3.Disengage the pawls, and then remove A/C control (1) from A/C
finisher.
INSTALLATION Installation is basically the reverse order of removal.
