Power Transistor




POWER TRANSISTOR

Removal and Installation


REMOVAL

1.Remove instrument panel assembly. Exploded View.
2.Remove cowl top extension. Exploded View.
3.Remove instrument stay.

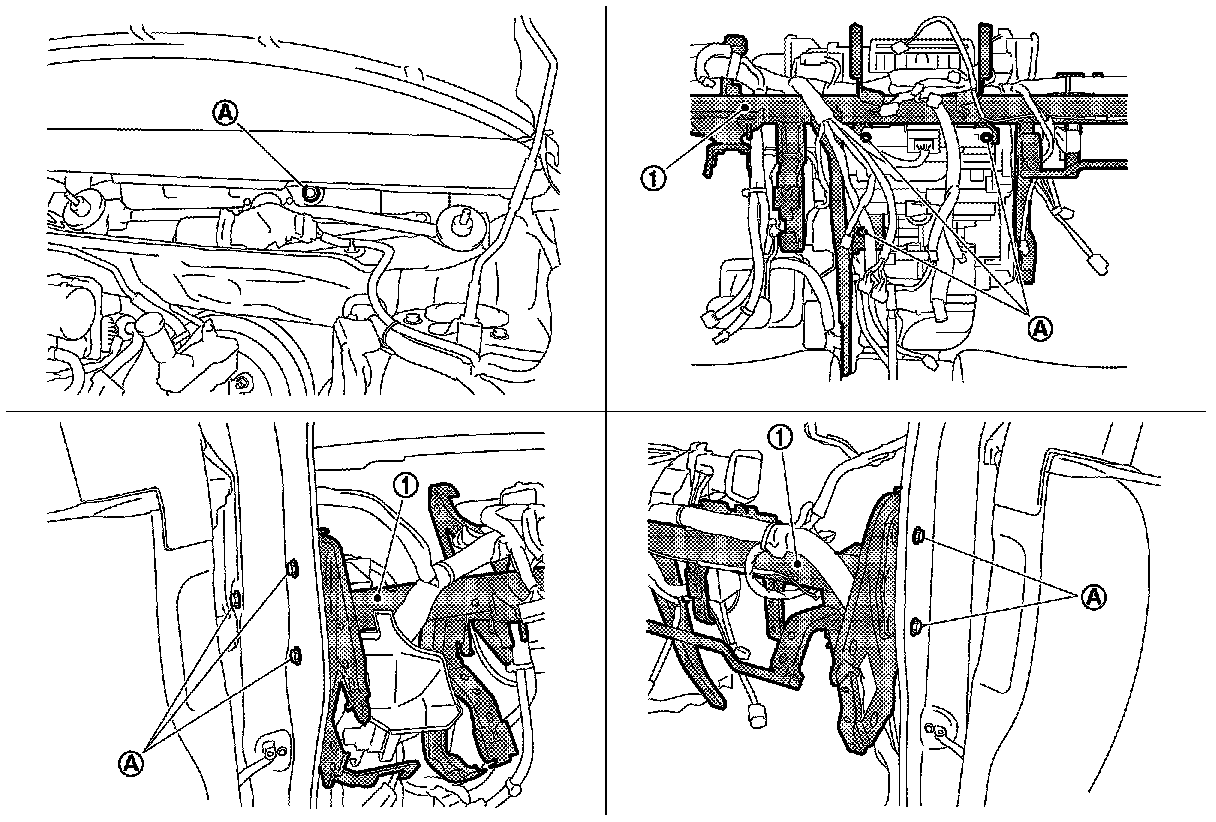

4.Remove mounting bolts (A), and then move steering member (1) to a position where it does not inhibit work.





5.Disconnect power transistor connector.





6.Press flange holding hook (A), and then slide heater core to leftward.
7.Remove power transistor (1) from the A/C unit assembly.

INSTALLATION

Installation is basically the reverse order of removal.
