Ignition Timing: Testing and Inspection
INSPECTION AND ADJUSTMENTIdle Speed and Ignition Timing Check IDLE SPEED With CONSULT
Check
idle speed in "DATA MONITOR" mode with CONSULT.
With GST
Check
idle speed in Service $01 with GST.
IGNITION TIMING Any of following two methods may be used.

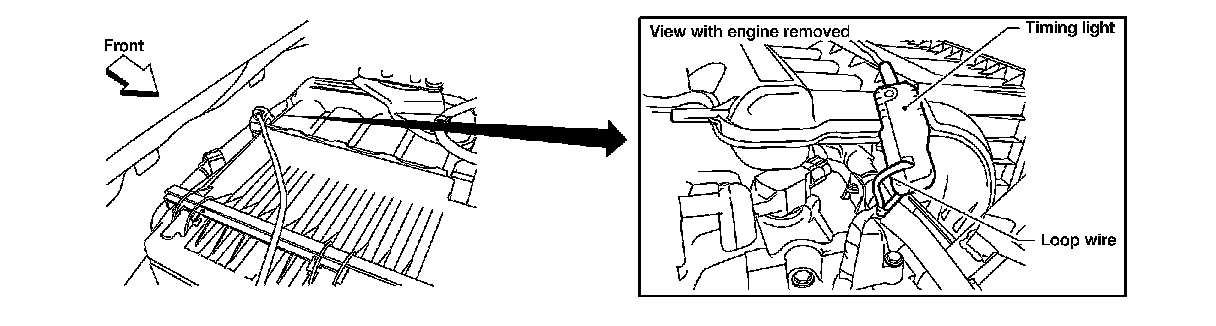

1.Attach timing light to loop wire as shown.
2.Check
ignition timing.
