Pinout Values and Diagnostic Parameters

A/C AUTO AMP.

Reference Value

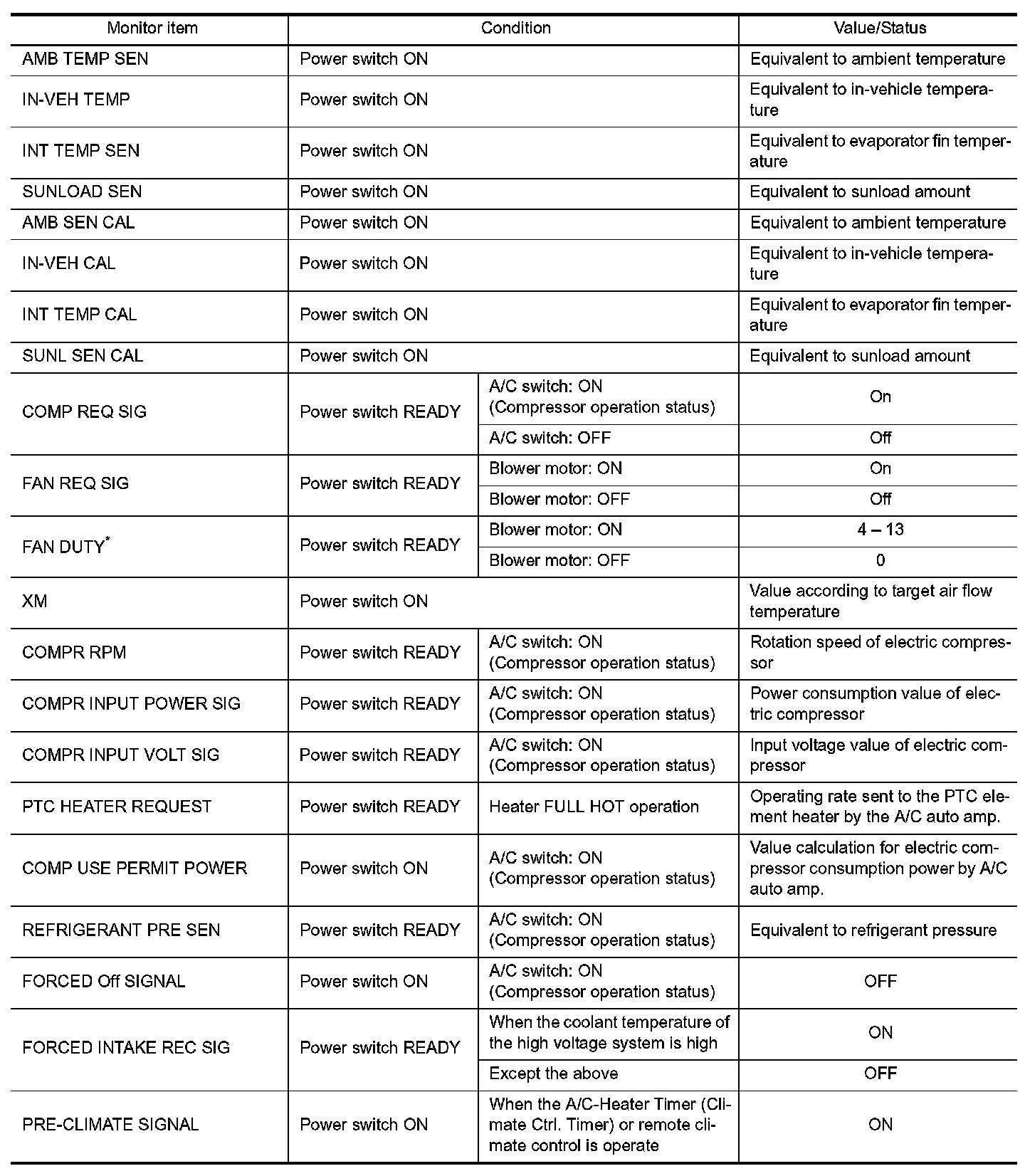

CONSULT DATA MONITOR REFERENCE VALUES

*: "DUTY" is displayed, but voltage is indicated. Or unit is not displayed but unit is (V).

TERMINAL LAYOUT

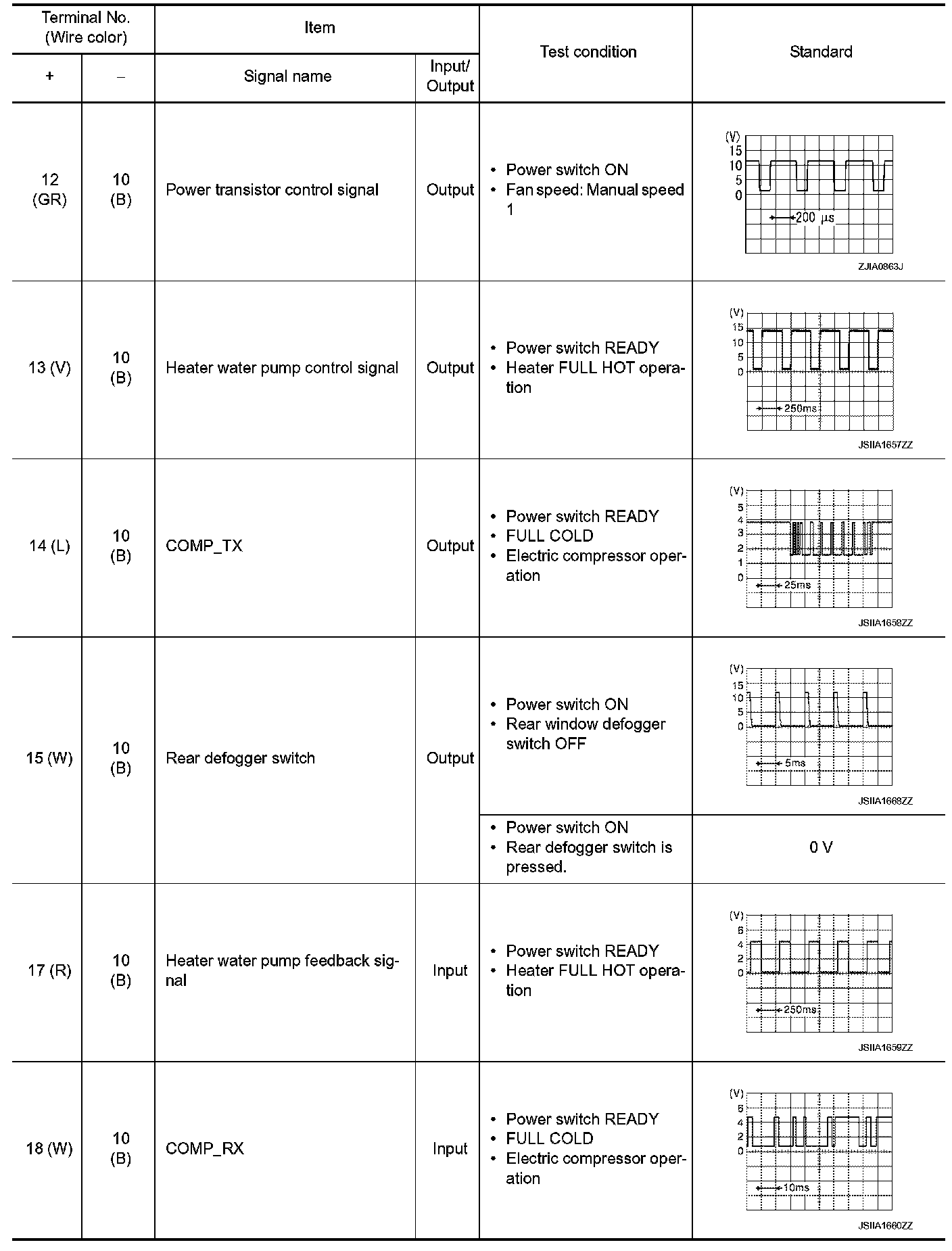

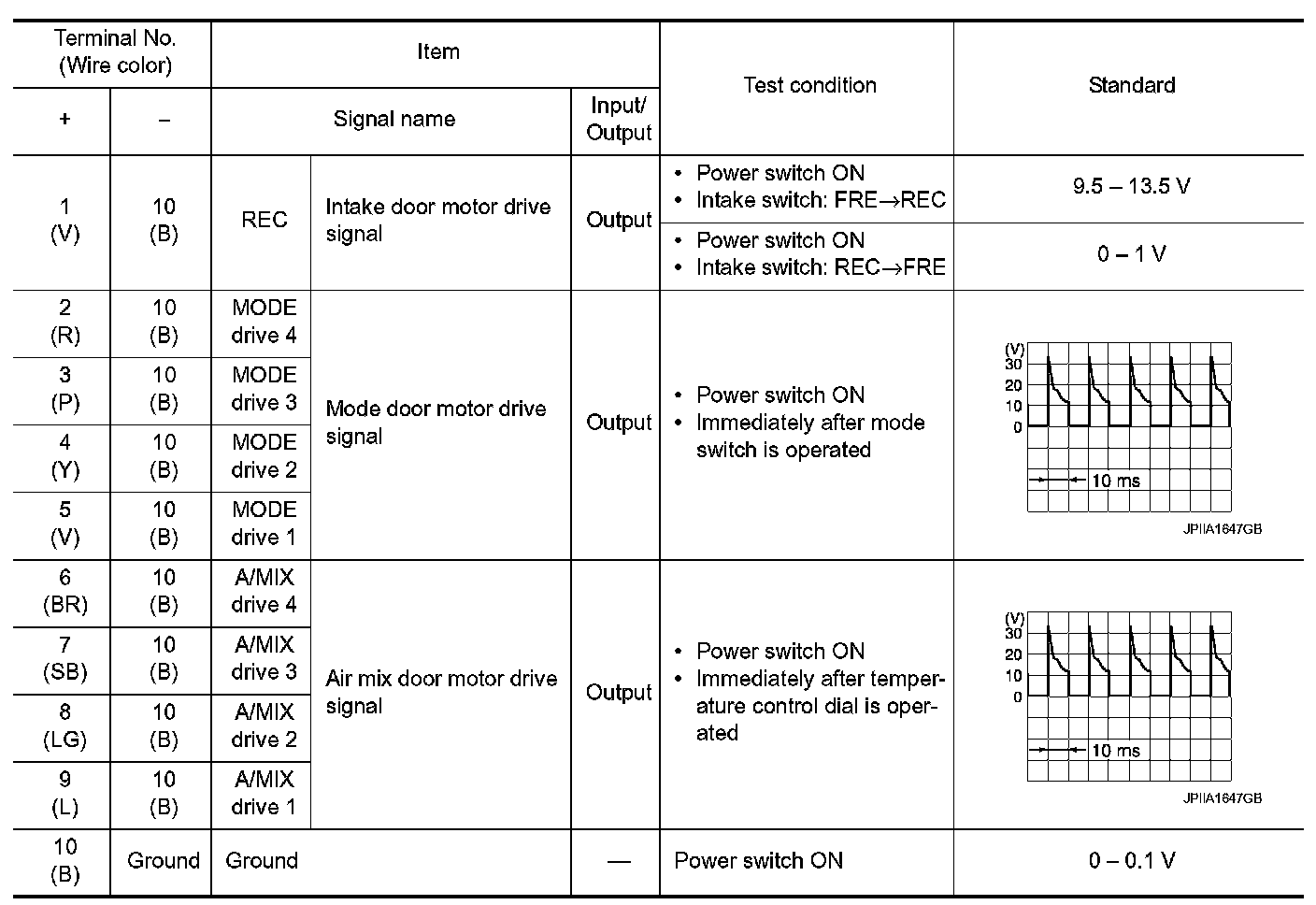

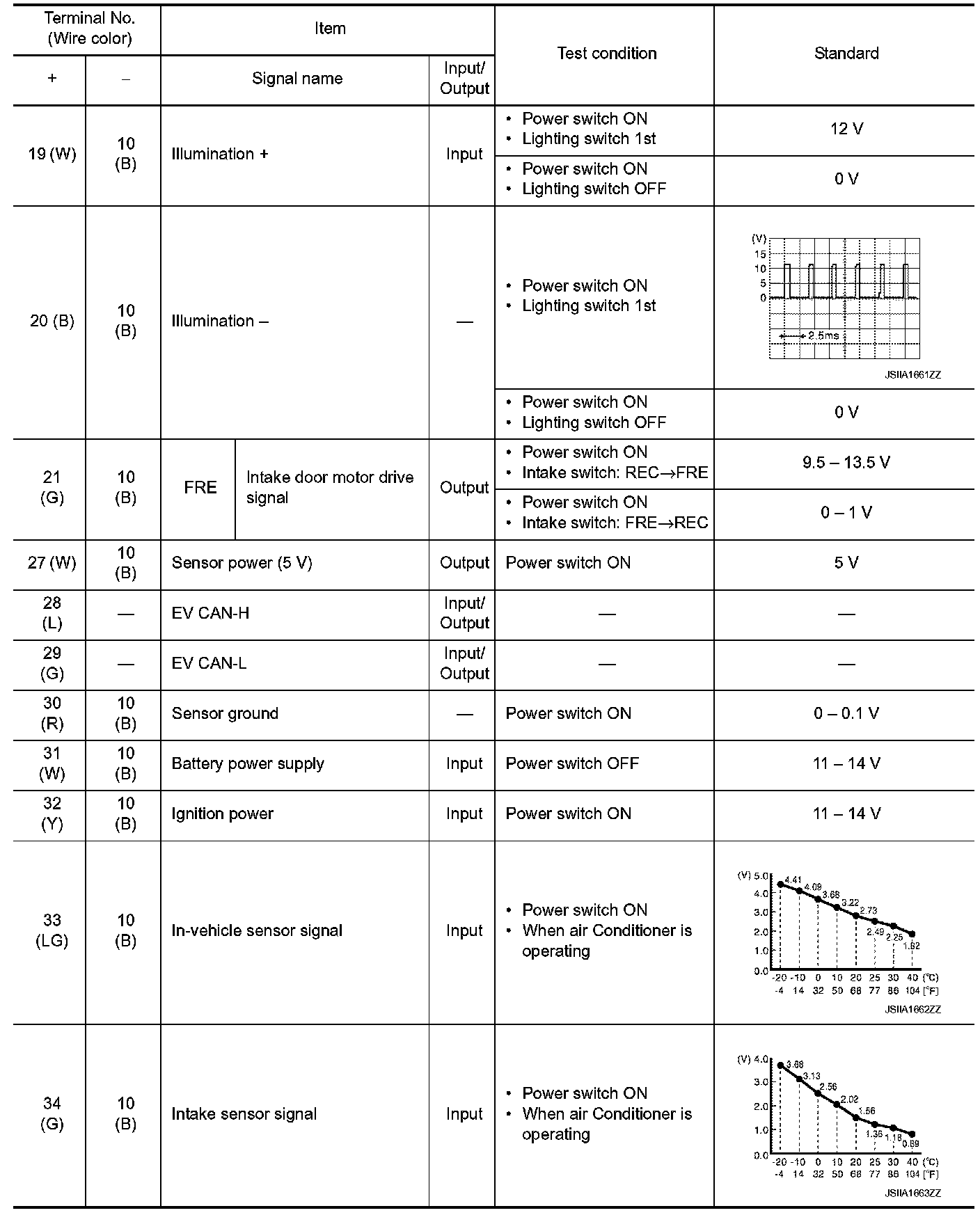

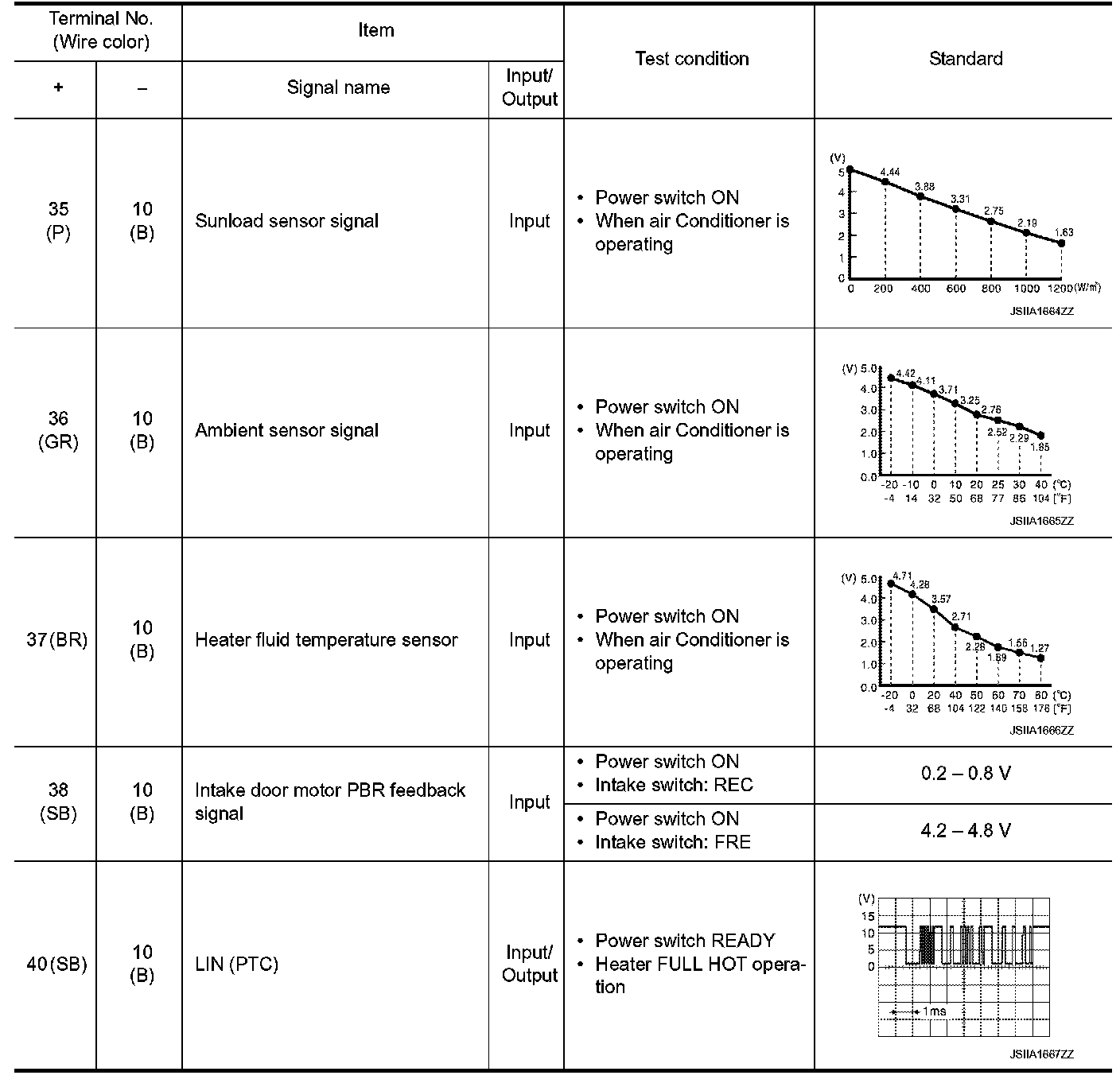

INPUT/OUTPUT SIGNAL STANDARD
