Procedure C: Removing the Service Plug

x


DANGER:





WARNING:





Procedure C: Removing the service plug.

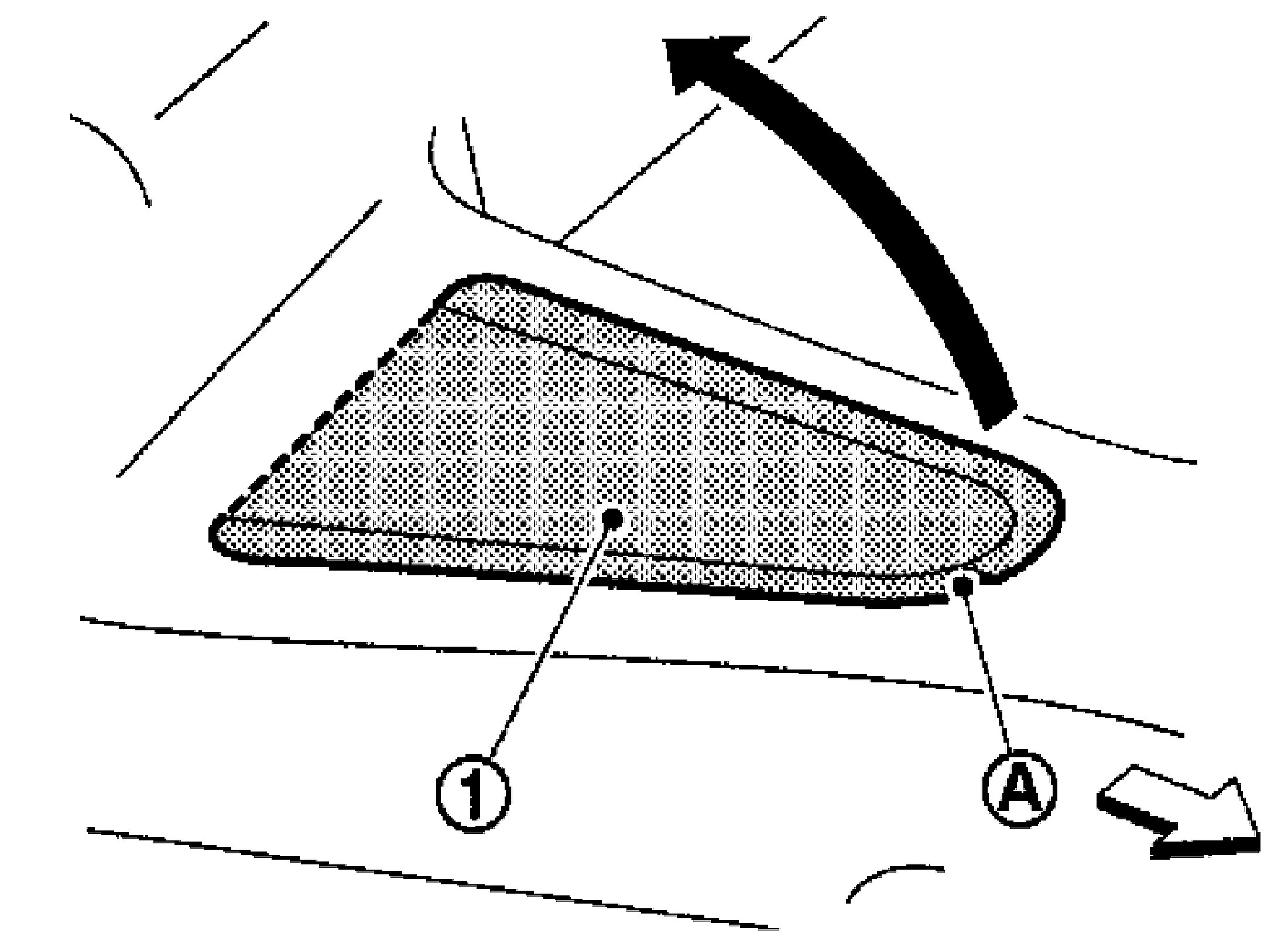

1. Locate the carpet flap (1) behind the center console on the floor raised area. At the notched area (A) pull up on the carpet flap. (1).

NOTE: Arrow in illustration depicts front direction

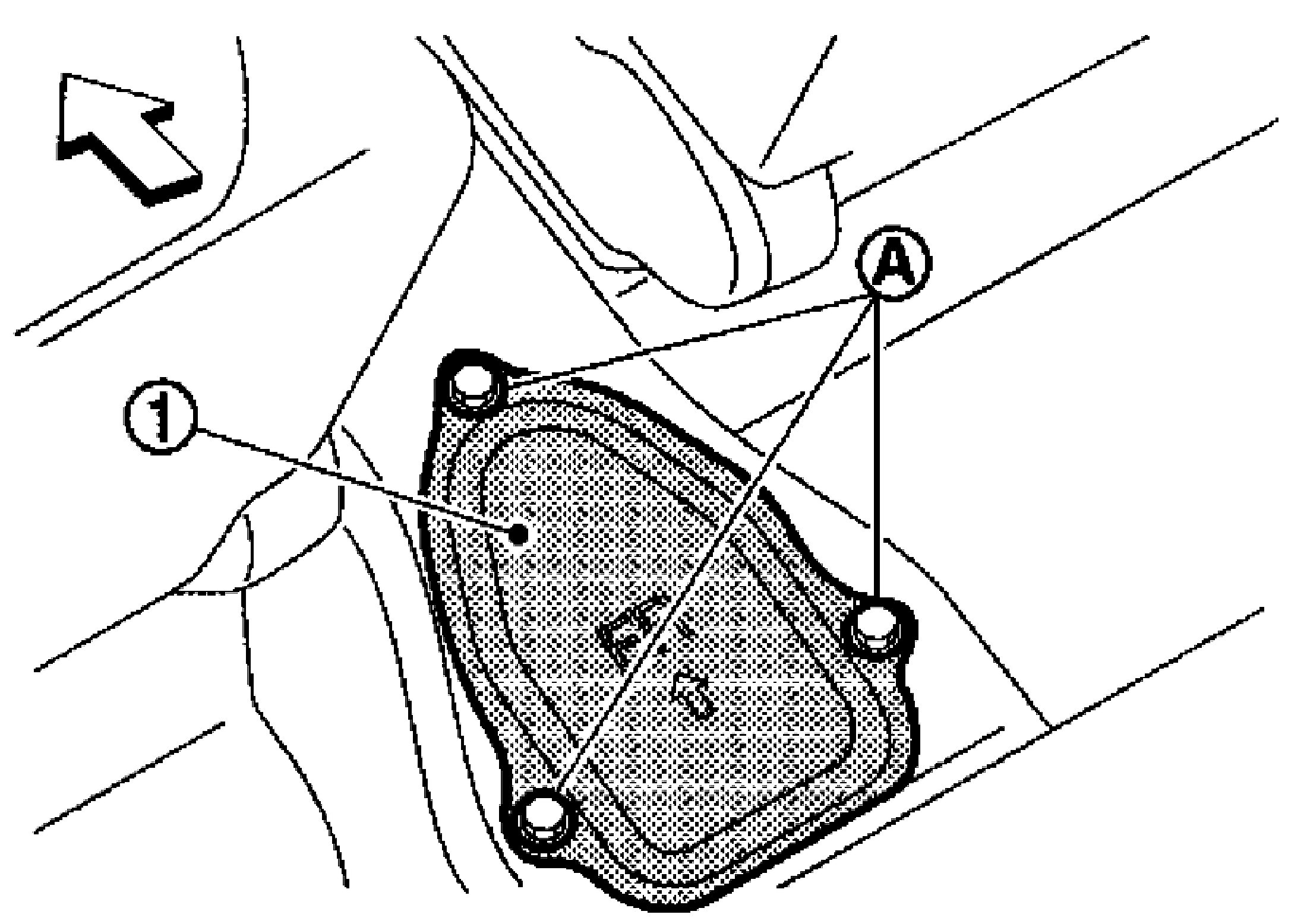

2. Remove the access cover bolts (A) and remove the cover (1).

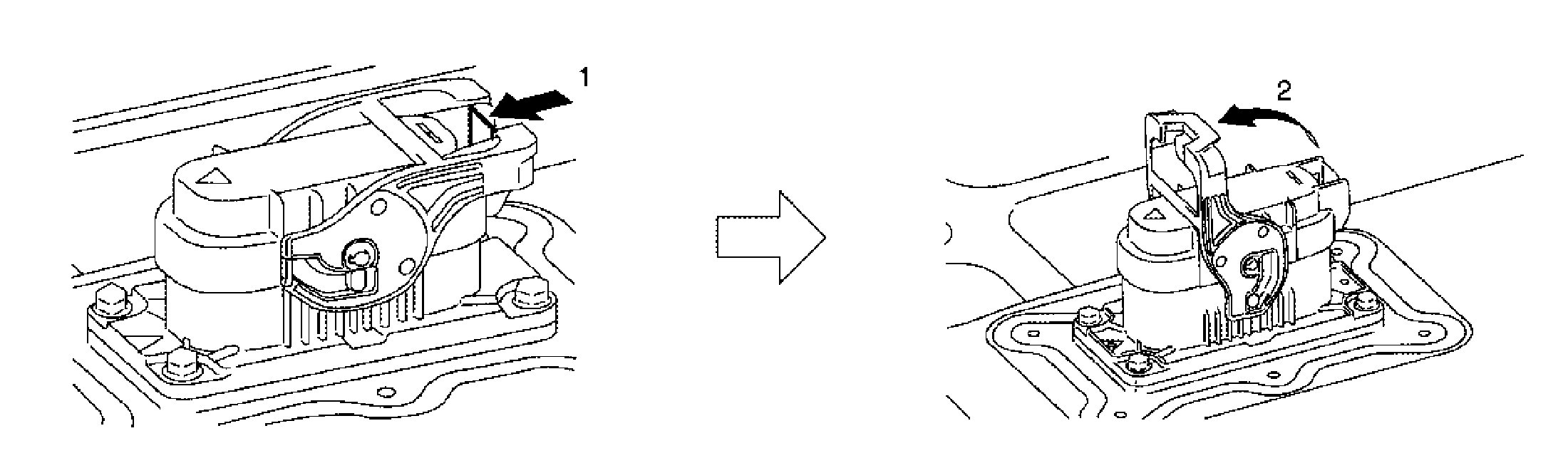

3. Remove the service plug by pressing the locking tab (1) and rotating the handle (2) upward. Using the handle, pull the service plug completely out of it's socket.
4. Wait ten (10) minutes for complete discharge of the high voltage condenser after the service plug has been removed.





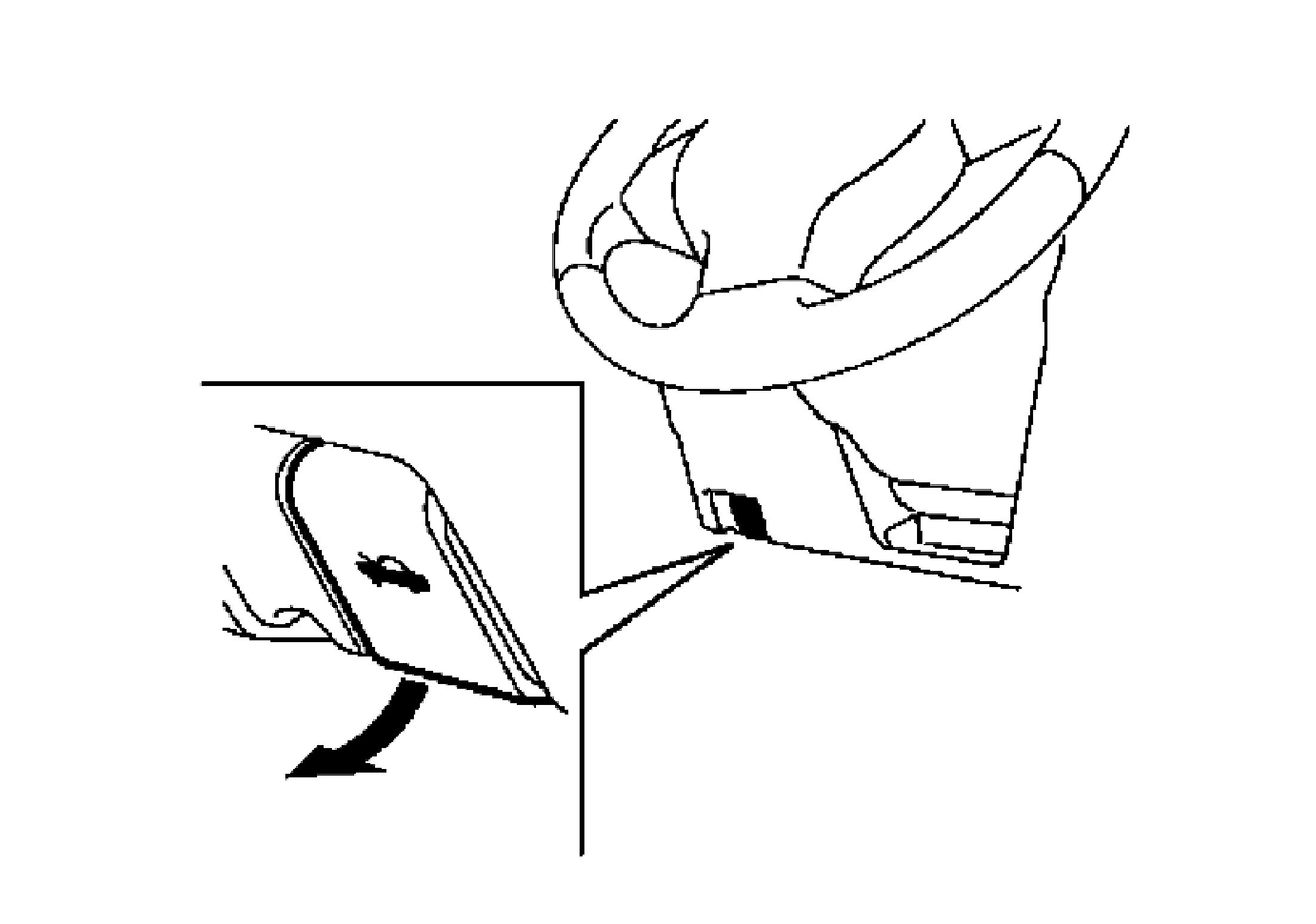

5. Open the hood.

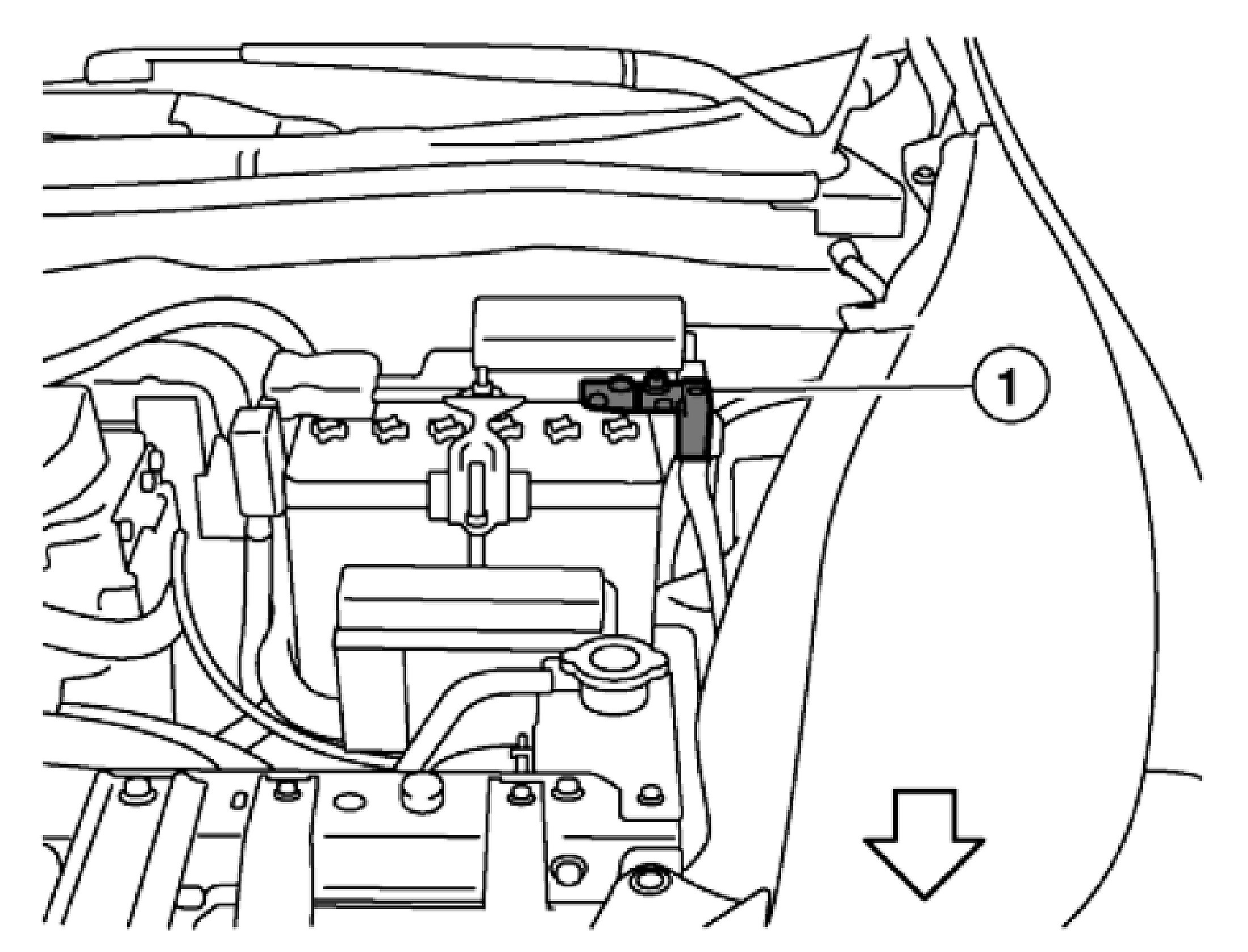

6. Disconnect the negative (-) 12V battery cable (1). Insulate the negative (-) battery cable with insulated tape.
7. Wait three (3) minutes for complete discharge of the air bag condenser after the battery cable has been disconnected.
8. Perform the fist response action.
