System Description

AUTOMATIC DRIVE POSITIONER SYSTEM

INTELLIGENT KEY INTERLOCK FUNCTION : System Description


OUTLINE

When unlocking doors by using Intelligent Key or door request switch (driver side), seat slide and steering tilt move directly to the exit assist function.
Other loads move to the exit assist function after performing memory function.
Then performs the entry assist function.

OPERATION PROCEDURE

1.Unlock doors by using Intelligent Key or door request switch (driver side) .
2.The system performs exit assist operation and memory operation.

OPERATION CONDITION

Satisfy all of the following items. The Intelligent Key interlock function is not performed if these items are not satisfied.

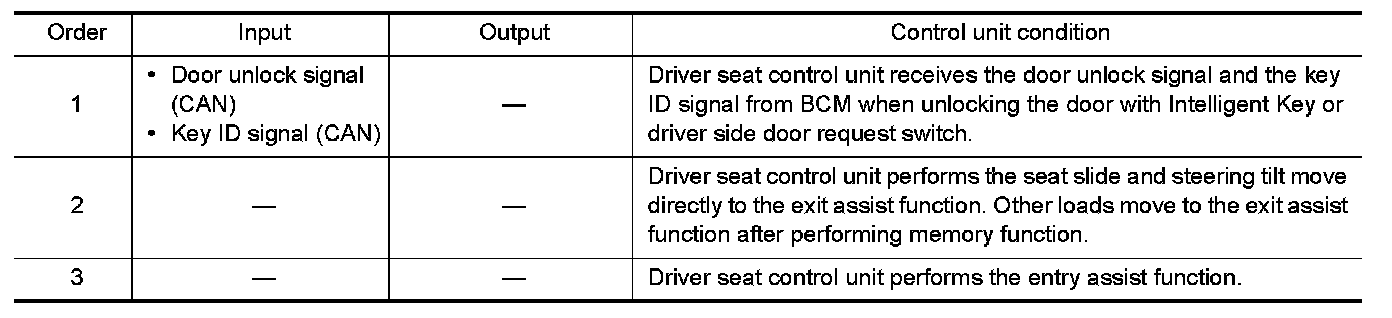

DETAIL FLOW
