System Description

AUTOMATIC DRIVE POSITIONER SYSTEM

ENTRY ASSIST FUNCTION : System Description


OUTLINE

The seat is in the exiting position when either following condition is satisfied, the seat returns from exiting position to the previous driving position.
NOTE:
- This function is set to OFF before delivery (initial setting).

OPERATION PROCEDURE

1.Turn the ignition switch to ACC.
2.Front seat LH and steering column will return from the exiting position to entry position.

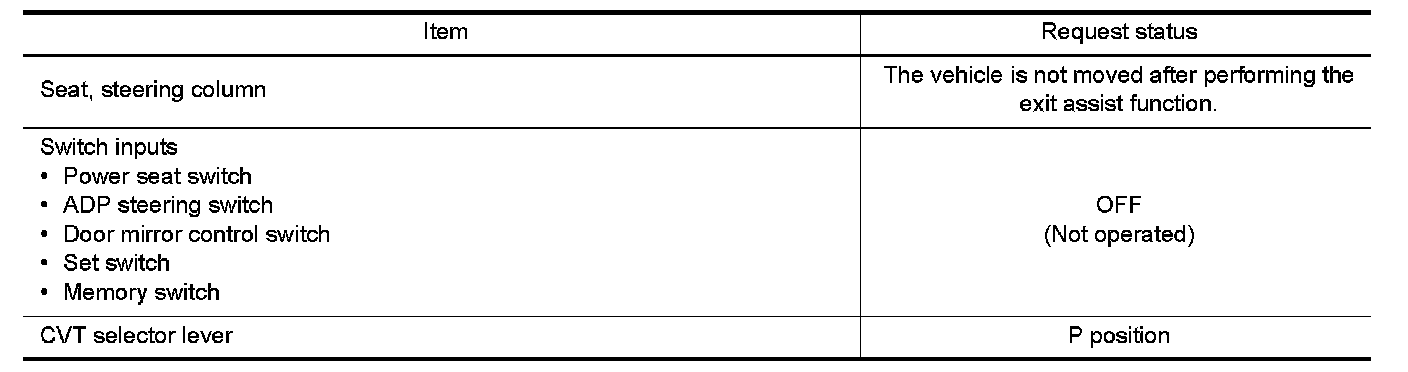

OPERATION CONDITION

Satisfy all of the following items. The entry assist function is not performed if these items are not satisfied.

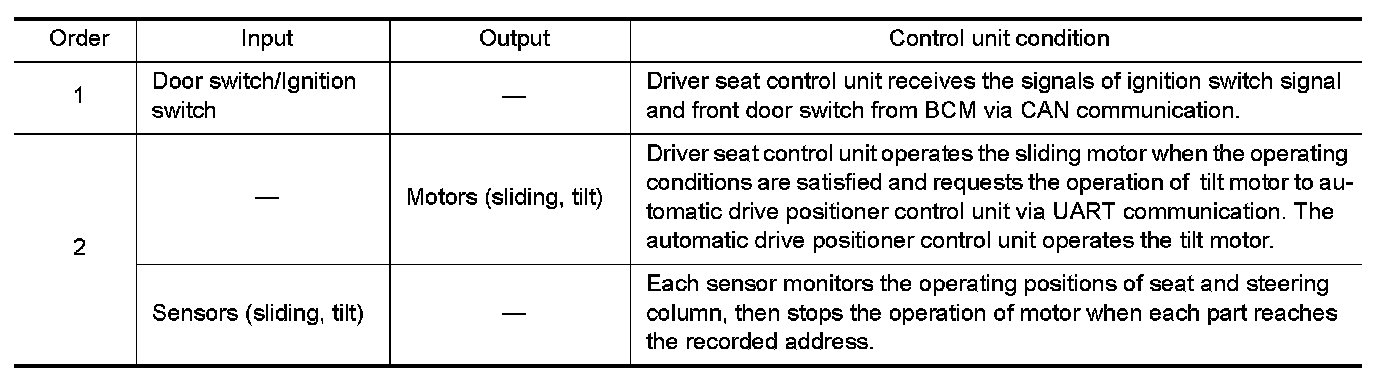

DETAIL FLOW
