Connecting Rod, Engine

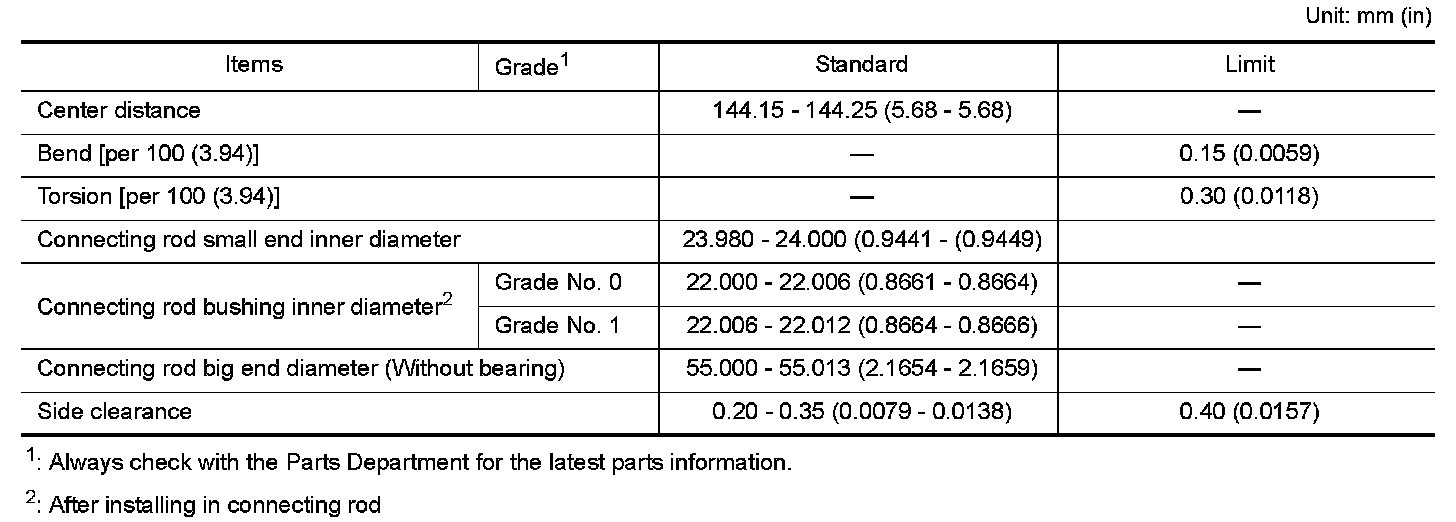

CONNECTING ROD Unit: mm (in)
Tighten the connecting rod nuts in two stages using Tool:
CAUTION: Always use either an angle wrench or protractor. Avoid tightening based on visual check alone.
Tool number : KV10112100 (BT-8653-A)
