Base Audio

COMPONENT PARTS

AV Control Unit


DESCRIPTION






- The AV control unit is equipped with the following parts. It is the master unit integrated with functions and controls the multi-AV system.





- Signals necessary for the vehicle information display function are received from ECM and the combination meter via CAN communication.
- Signals necessary for vehicle setting functions are sent and received with BCM via CAN communication.
- It inputs the signal for driving status recognition (vehicle speed signal, reverse signal, and parking brake signal).
- A predictive course line is generated on the camera image from the rear view camera, and it is shown on the front display.
- It inputs the signals for driving status recognition (vehicle speed, reverse and parking brake).
NOTE:
For details of each functions, Base Audio.
Audio Amplifier
- 50 W x 4ch amplifiers are installed.
- Audio sound, TEL voice and guiding voice are output to each speaker.
AM/FM Electronic Tuner
The adoption of the PLL frequency synthesizer system enables the signal outputting with accurate frequencies.
CD/DVD drive
- It is CD-R/CD-RW compliant and enables MP-3 and WMA files to play music.
- It displays the artist name, album title or song title recorded to the file by the ID-3 tag/WMA tag display function.
- DVD playback function is equipped.
USB Interface
- Music can be played by connecting an iPod(R) or USB memory.
Flash memory
The adoption of the music box function enables the recording of music data to flash memory and the storing of approximately 2,000 tracks at a maximum.
Camera Controller
- Warning message, width/distance guiding line and predictive course line are generated on the image from the rear view camera.
- The predictive course line is drawn based on the steering signal received from the steering sensor via CAN
communication.

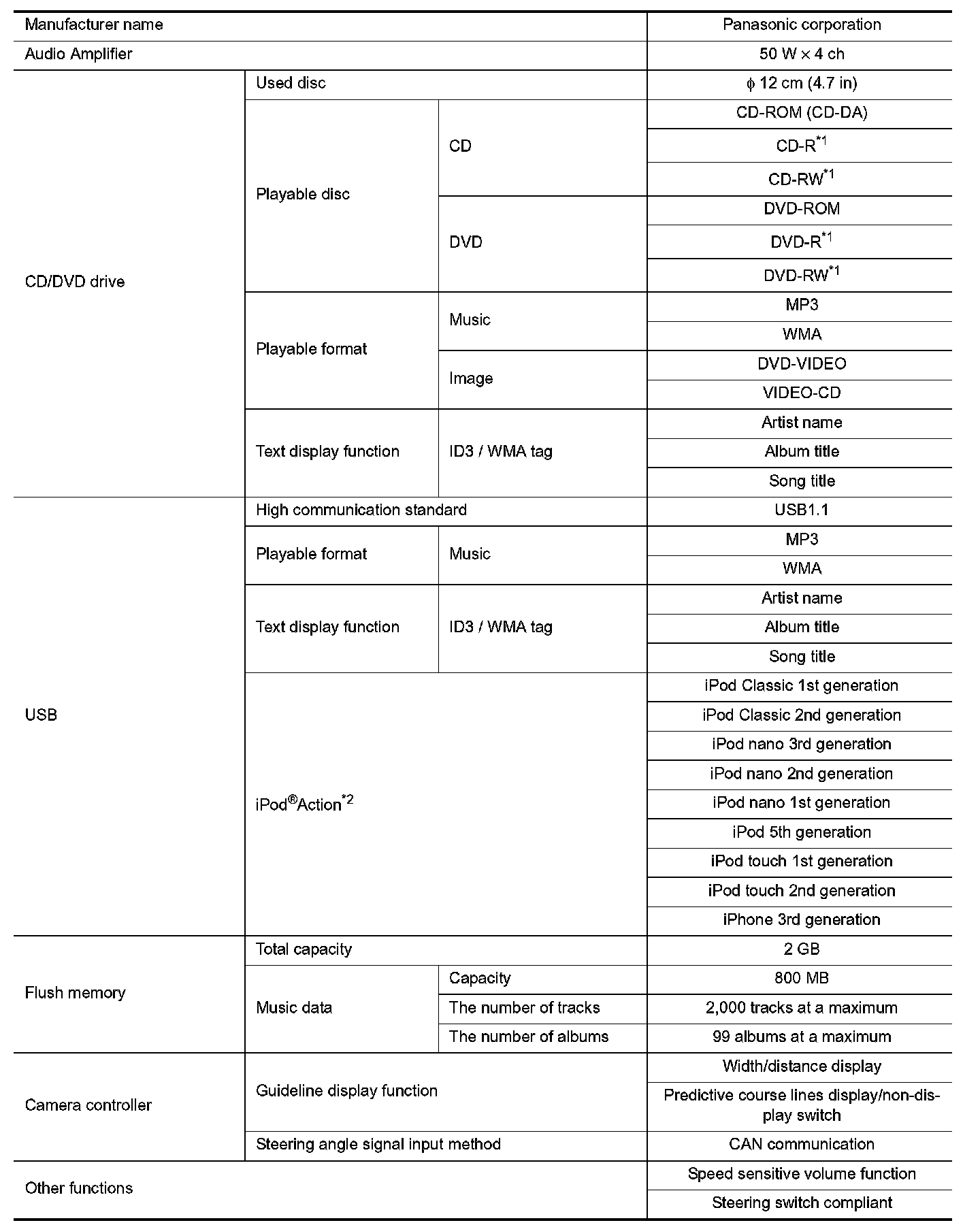

Specification






- *1: If the reflectance of the surface of the media is low, the data may not be read.
- *2: It may not be used if it is not updated to the latest firmware or partial functions may not work if it is used.
