Memory Positioning Module: Service and Repair

AUTOMATIC DRIVE POSITIONER CONTROL UNIT

Removal and Installation

REMOVAL

1.Remove instrument lower panel RH. Removal And Installation.

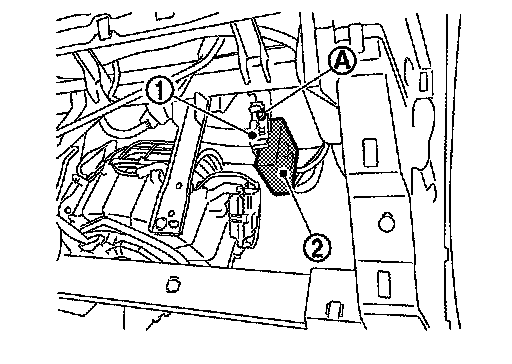

2.Remove screw (A), and then remove automatic drive positioner control unit (2) from bracket (1).

INSTALLATION

Install in the reverse order of removal.
NOTE:
After installing the driver seat, perform additional service when replacing control unit. Description.
