Sliding Door Control Unit LH
DIAGNOSIS SYSTEM (SLIDING DOOR CONTROL UNIT LH)CONSULT Function APPLICATION ITEM CONSULT performs the following functions via CAN communication with
sliding door control unit LH.

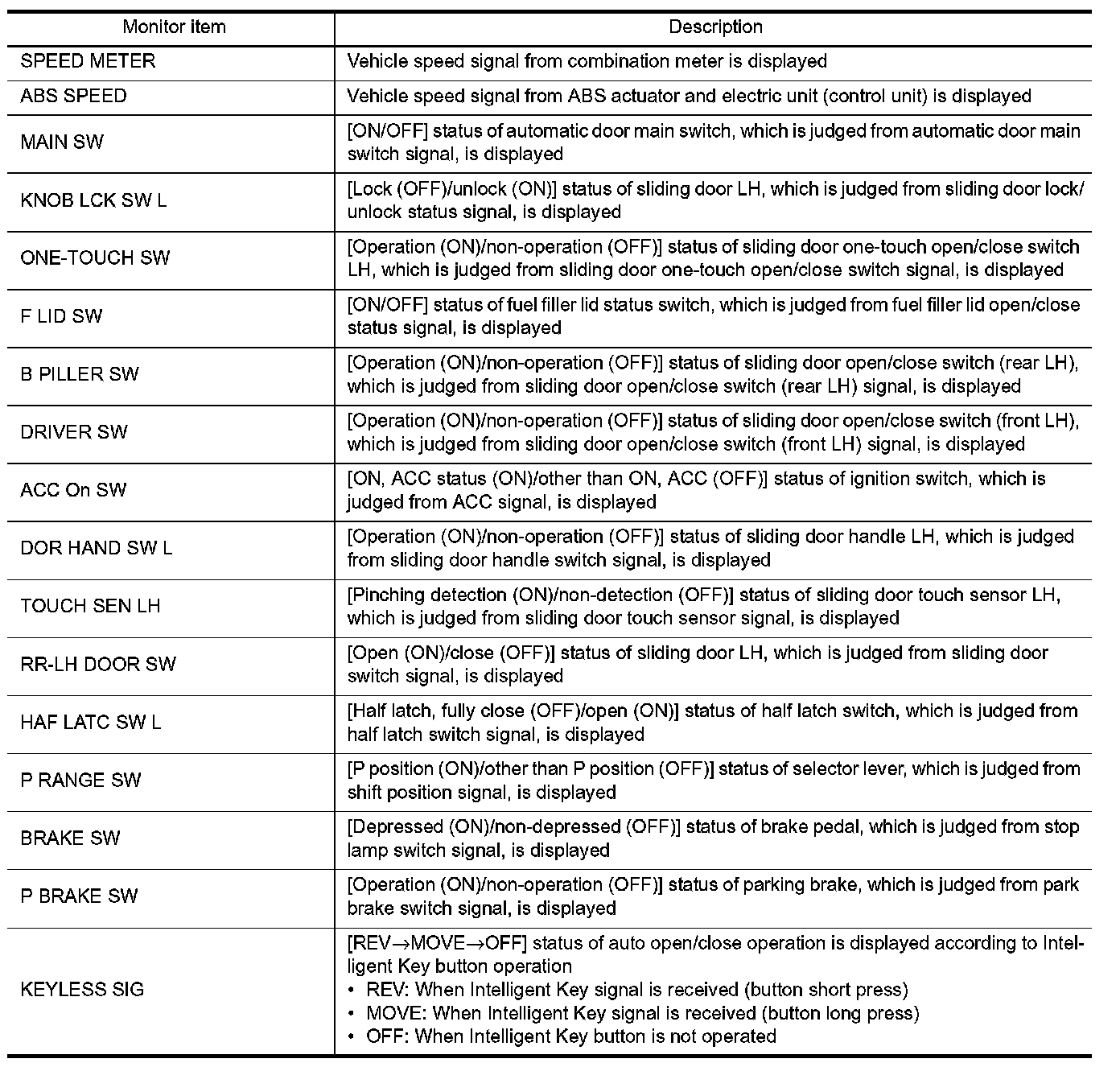

DATA MONITOR ACTIVE TEST SELF-DIAG RESULT Testing and Inspection.
