Power Seat Control Module: Service and Repair
DRIVER SEAT CONTROL UNITRemoval and Installation REMOVAL 1.Remove driver seat.
Removal And Installation.

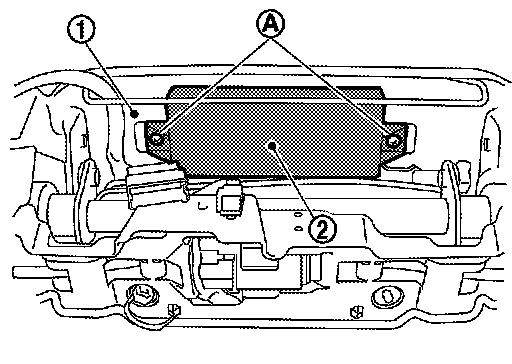

2.Remove screws (A), and then remove driver seat
control unit (2)
from seat cushion frame (1)
INSTALLATION Install in the reverse order of removal.
NOTE: After installing the driver seat, perform additional service when replacing
control unit.
