Rear A/C Control
REAR A/C CONTROLRemoval and Installation REMOVAL With Rear Display
1.Remove roof console.
Removal And Installation.

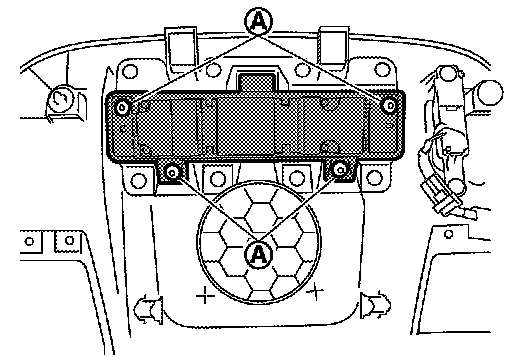

2.Remove fixing screws (A), and then remove rear A/C control.
Without Rear Display

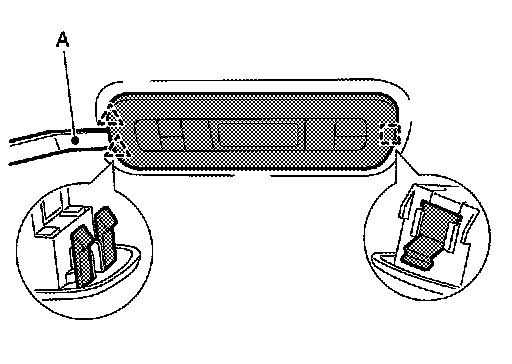

1.Disengage fixing pawls and metal clip using a remover tool (A).
2.Disconnect harness connector, and then remove rear A/C control.
INSTALLATION Install in the reverse order of removal.
