Exhaust Gas/Outside Odor Detecting Sensor Sensitivity Adjustment Function

SYSTEM SETTING

Exhaust Gas/Outside Odor Detecting Sensor Sensitivity Adjustment Function


DESCRIPTION

Sensitivity of exhaust gas/outside odor detecting sensor is adjustable for 2 steps of high and low. This function is used when sensitivity of sensor is different from customer's sense of smell.

HOW TO SET

1.Starts on board self-diagnosis STEP 5 mode (Each sensor recognition temperature check; "51" or "52" is indicated on front A/C control display).
2.Press fan switch (up: +) twice and check that "7" is indicated on front A/C control display.
3.After approximately 3 seconds, the exhaust gas/outside odor detecting sensor sensitivity adjustment function can be available.

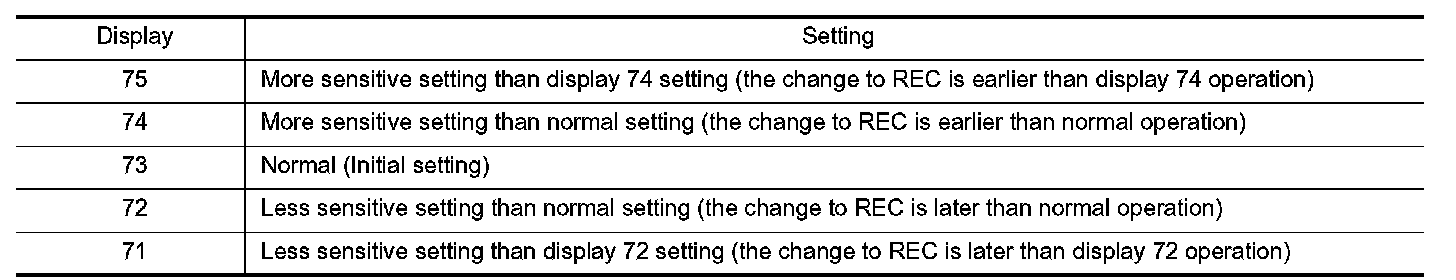

4.Press temperature control switch (driver side) to select the setting as per the following.





NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the setting of the exhaust gas/outside odor detecting sensor sensitivity adjustment function may be cancelled.
