Inlet Port Memory Function

SYSTEM SETTING

Inlet Port Memory Function


DESCRIPTION

- Air inlet is memorized when ignition switch is turned OFF, and the air inlet can be set either REC (recirculation), FRE (fresh air intake), or "Do not perform the memory" when ignition switch is turned ON again.
- When "Do not perform the memory" is set, the air inlet is controlled automatically when ignition switch is turned ON again.

HOW TO SET

1.Starts on board self-diagnosis STEP 5 mode (Each sensor recognition temperature check; "51" or "52" is indicated on front A/C control display).
2.Press fan switch (up: +) and check that "61" is indicated on front A/C control display.
3.After approximately 3 seconds, the inlet port memory function can be available.
4.Press AUTO intake switch or intake switch to set the inlet port memory function as per the following. [with
ACCS (Advanced Climate Control System)]
Press FRE switch or REC switch to set the inlet port memory function as per the following. [without ACCS
(Advanced Climate Control System)]

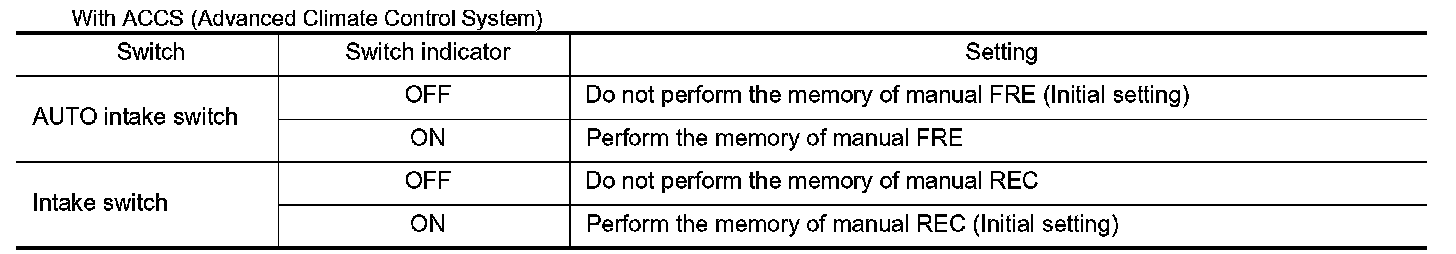

With ACCS (Advanced Climate Control System)

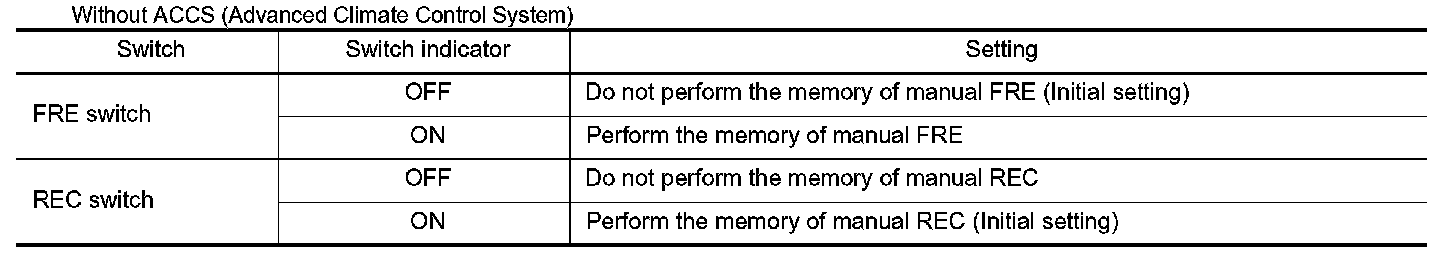

Without ACCS (Advanced Climate Control System)





NOTE:
When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10 V
or less, the setting of the inlet port memory function may be cancelled.
