Temperature Setting Trimmer (Front)

SYSTEM SETTING

Temperature Setting Trimmer (Front)


DESCRIPTION

If the temperature felt by the customer is different from the front air flow temperature controlled by the temperature setting, the A/C auto amp. control temperature can be adjusted to compensate for the temperature setting.

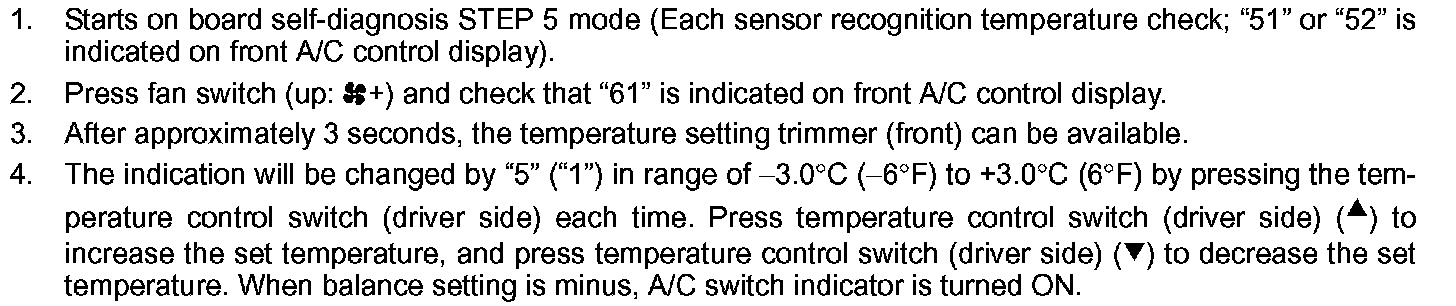

HOW TO SET






















NOTE:
- When 3�C (-6�F) is selected on the temperature setting set as 25�C (75�F), the temperature controlled by
A/C auto amp. is 25�C (75�F) - 3�C (6�F) = 22.0�C (69�F), and then the temperature becomes lower than the temperature setting.
- When the battery cable is disconnected from the negative terminal or when the battery voltage becomes 10
V or less, the setting of the difference between the set temperature and control temperature may be cancelled.
