Removal And Installation
IPDM E/RRemoval and Installation CAUTION: IPDM E/R integrated relays are not serviceable parts, and must not be removed from the unit. REMOVAL 1.Disconnect the battery cable from the negative terminal.
2.Remove the
relay box cover.

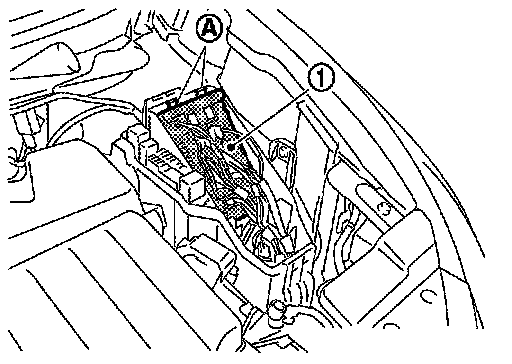

3.Disconnect the harness connector form the IPDM E/R (1).
4.Press the pawl (A) and remove the IPDM E/R from
relay box.
INSTALLATION Install in the reverse order of removal.
