Removal And Installation




ACCELERATOR CONTROL SYSTEM

Removal and Installation


REMOVAL

1.Disconnect accelerator pedal position sensor harness connector.
2.Remove accelerator pedal assembly.

CAUTION:
- Never disengage accelerator pedal assembly and bracket.
- Never disassemble accelerator lever. Never remove accelerator pedal position sensor from accelerator lever.
- Avoid impact from dropping etc. during handling.
- Be careful to keep accelerator lever away from water.

INSTALLATION

Read the following instructions carefully, and install accelerator pedal assembly in the reverse order of removal.

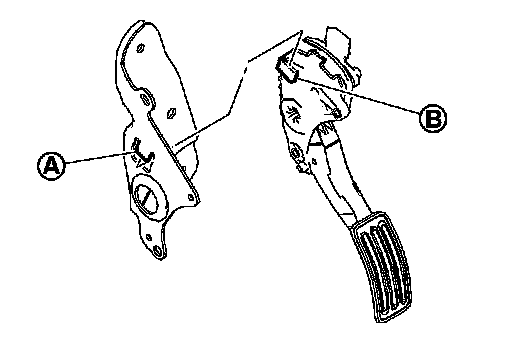

- Insert pawl (A) of bracket into locating hole (B) of accelerator pedal assembly to tighten the mounting bolts.
