Computers and Control Systems: Service and Repair
ECMRemoval and Installation REMOVAL 1.Remove battery.
Exploded View.
2.Disconnect ECM harness connectors.
Harness Connector.

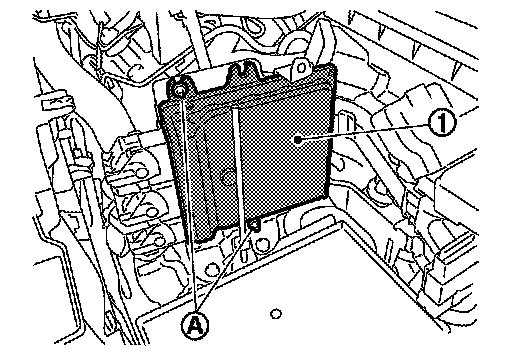

3.Remove ECM mounting nuts (1), and then remove ECM (A).
INSTALLATION Install in the reverse order of removal.
CAUTION: Must be perform additional service when replacing ECM. Refer toWork Procedure.
