Component Inspection
AUTOMATIC DOOR MAIN SWITCHAUTOMATIC BACK DOOR CONTROL MODULE : Component Inspection 1. CHECK AUTOMATIC DOOR MAIN SWITCH 1.Turn ignition switch OFF.
2.Disconnect automatic door main switch connector.

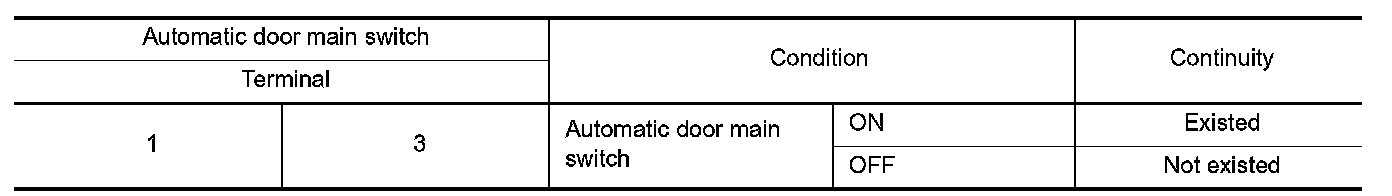

3.Check continuity between automatic door main switch terminals.
Is the inspection result normal?
YES- INSPECTION END
NO- Replace automatic door main switch.
