Intake Manifold
SERVICE DATA AND SPECIFICATIONS (SDS)Intake Manifold INTAKE MANIFOLD Unit: mm (in)
INTAKE MANIFOLDIf stud bolts were removed, install them and tighten to the specified torque below.

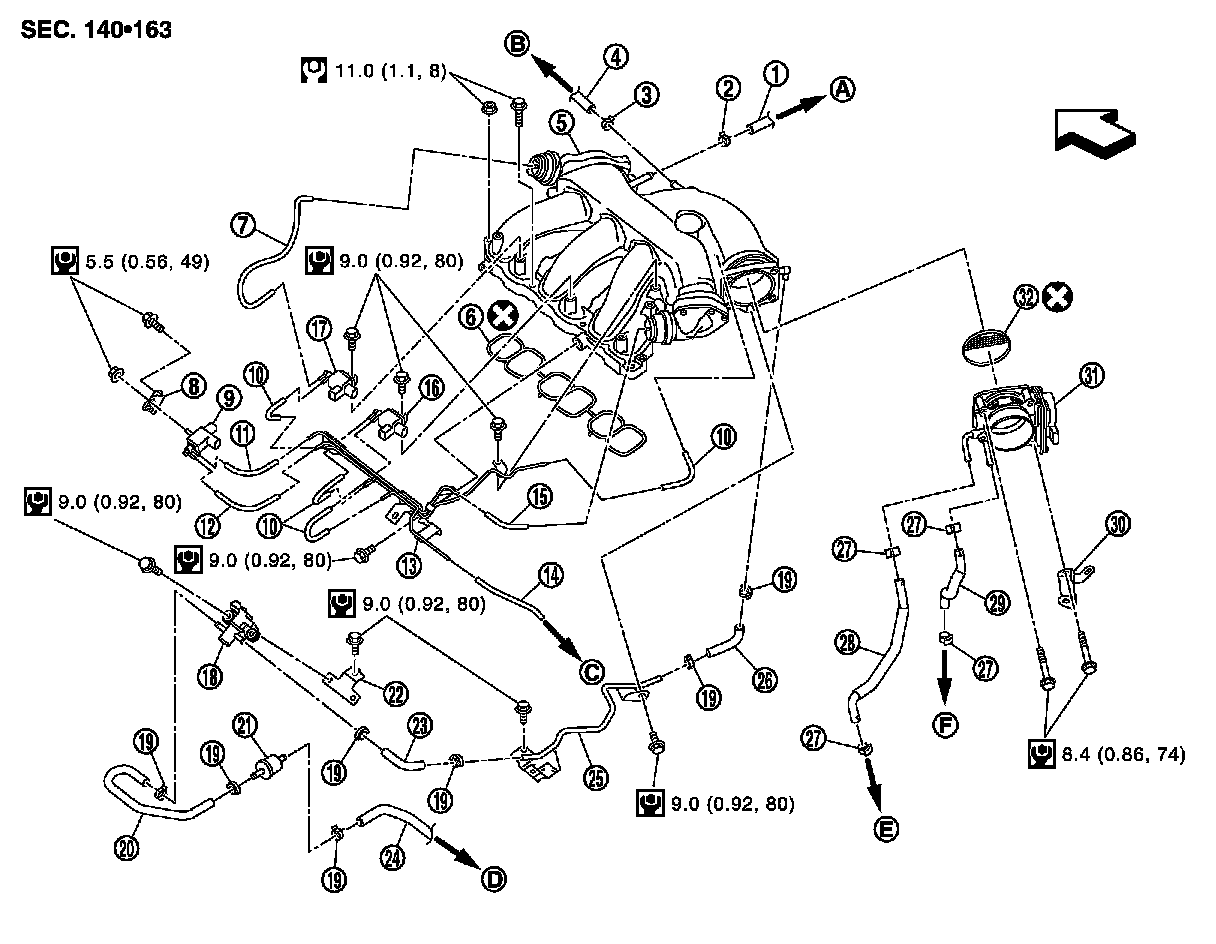

Tighten all mounting nuts and bolts to the specified torque in two or more steps in numerical order shown in the figure.
INTAKE MANIFOLD COLLECTORTighten mounting nuts and bolts in numerical order as shown in the figure.
