Keyless System - Door Request Inop/No Start
Classification: EL12-046Reference: NTB12-064
Date: July 31, 2012
2012 QUEST;
DOOR REQUEST SWITCH INOPERABLE AND NO START AT PDI
APPLIED VEHICLES: 2012 Quest (E52)
APPLIED VINS: Vehicles built between:
JN8AE2KP(*)C9 042969 and JN8AE2KP(*)C9 045976
APPLIED DATES: Vehicles built between:
April 2, 2012 and May 7, 2012
IF YOU CONFIRM
During pre-delivery inspection (PDI), one of the two vehicle Intelligent Keys behaves in the following manner:
^ Doors will lock/unlock when the lock/unlock button on the Intelligent Key is pushed
^ Doors will not lock/unlock when the door request switch is pushed
^ Vehicle will not start unless the Intelligent Key is held near the ignition start button
ACTION
Reprogram both Intelligent Keys. Do not replace the Intelligent Key.
a) Confirm the Immobilizer Card is inserted into the CONSULT PC.
b) Connect the CONSULT-III plus VI to the vehicle, then push the vehicle power switch once to ON mode.
c) Start CONSULT-III plus, then select Immobilizer and follow the onscreen procedure.
NOTE:
Make sure your ASIST has been freshly synchronized and all CONSULT-III plus upgrades have been installed before starting the reprogramming procedure.

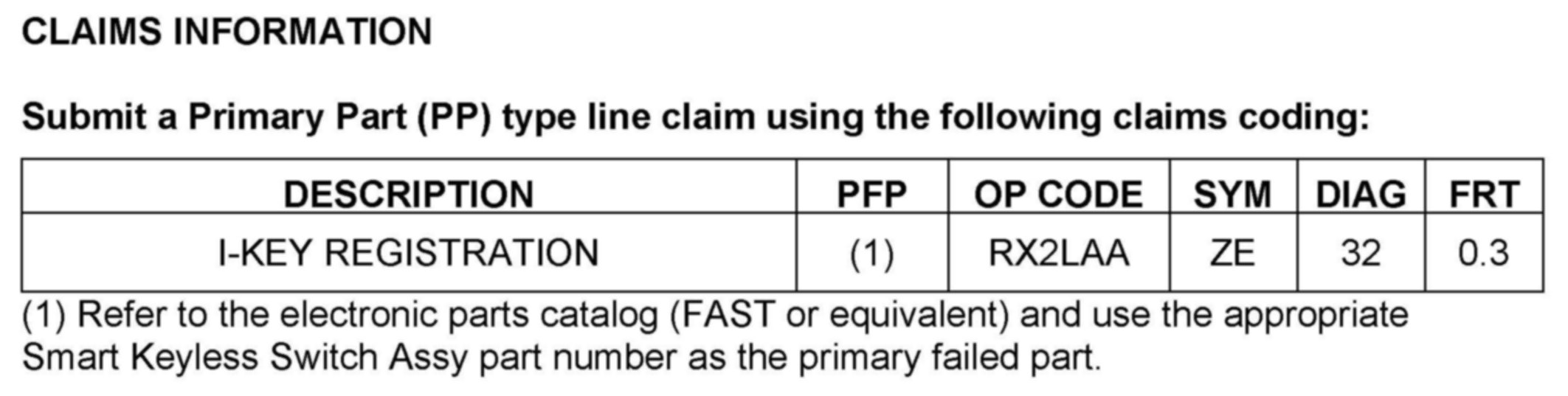

CLAIMS INFORMATION
