Warning Function

INTELLIGENT KEY SYSTEM

WARNING FUNCTION : System Description


DESCRIPTION

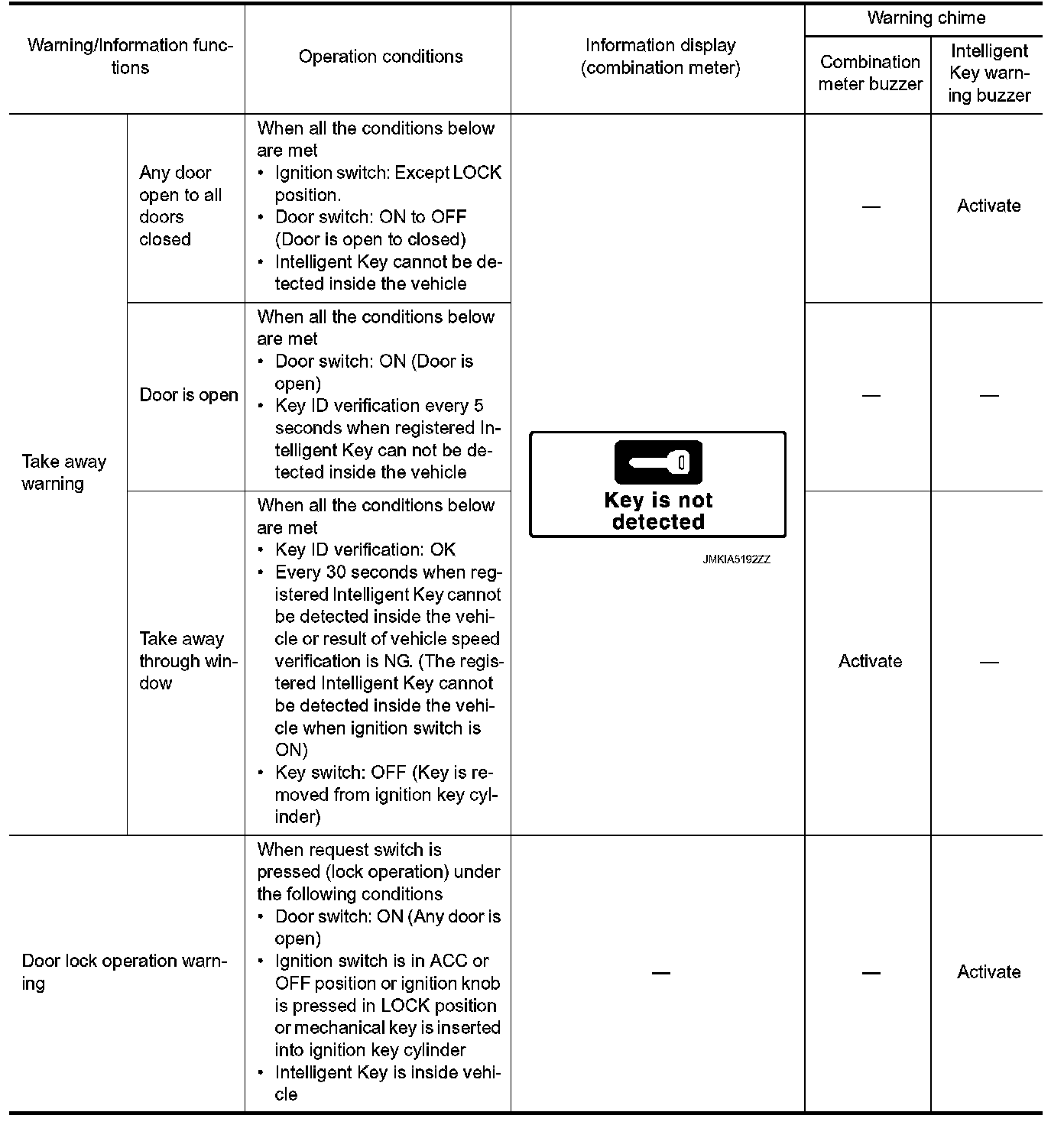

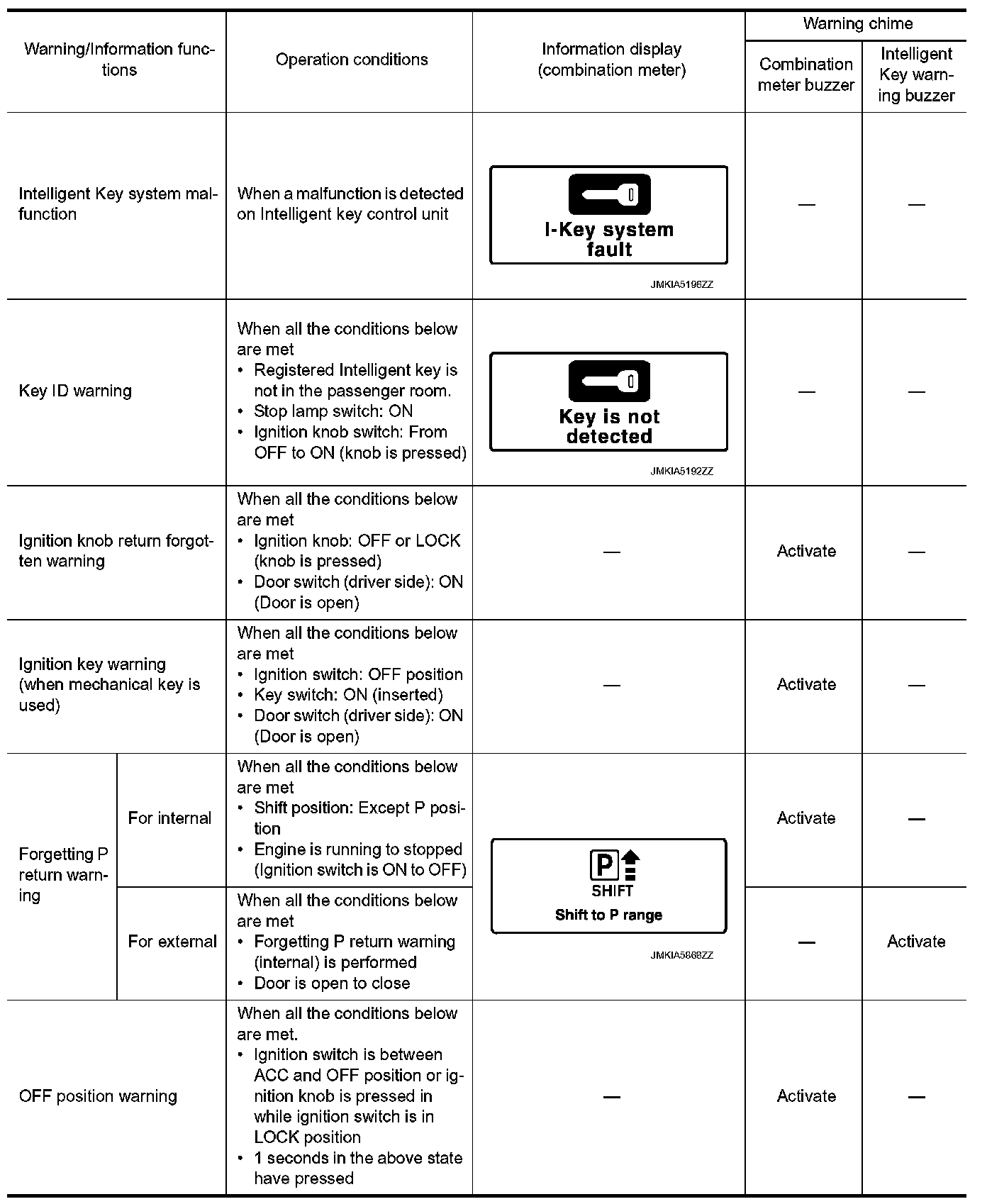

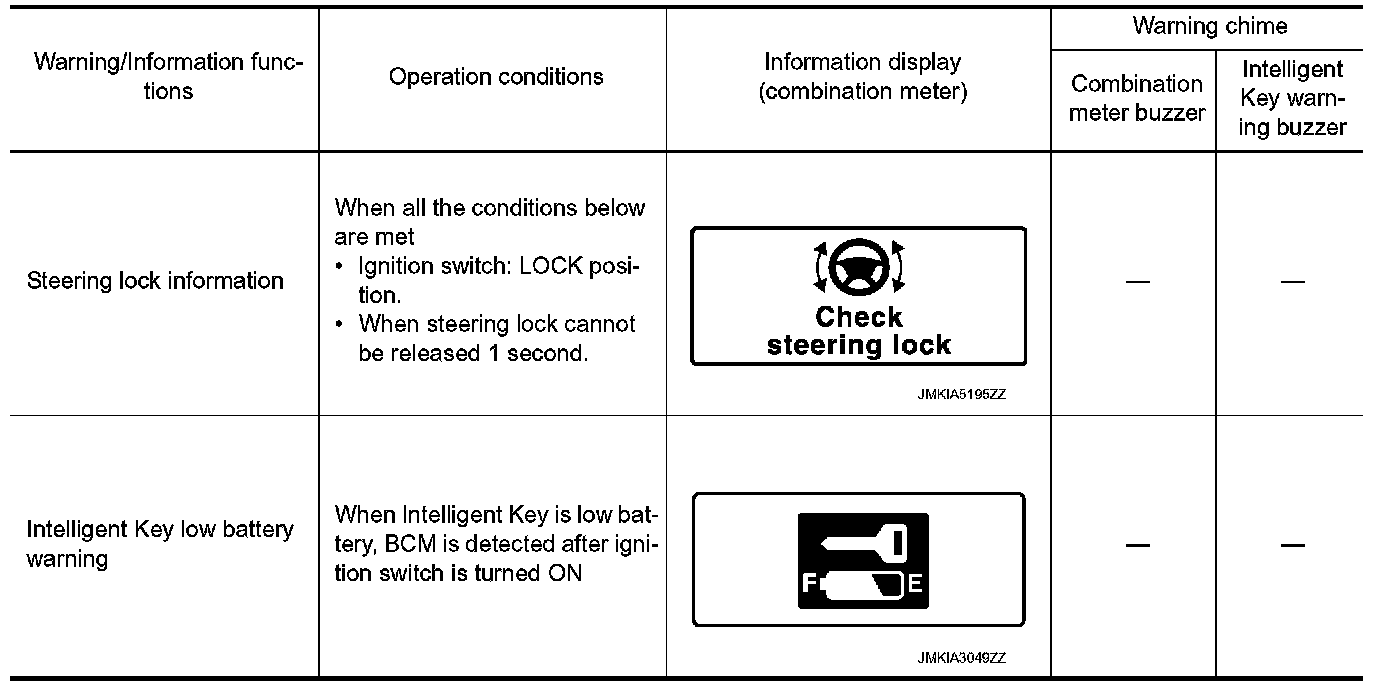

The warning function are as per the following items and are given to the user as warning information and warnings using combinations of Intelligent Key warning buzzer, information display and buzzer (built in combination meter.

INTELLIGENT KEY WARNING OPERATION

Once one of the following conditions below is established, alert or warning will be executed.
















KEY REMINDER OPERATION

- The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is pressed while the driver door is open and mechanical key is inserted ignition key cylinder.
- The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is pressed while any door other than the driver door is open.
