Removal And Installation

A/C CONTROL

Removal and Installation

REMOVAL

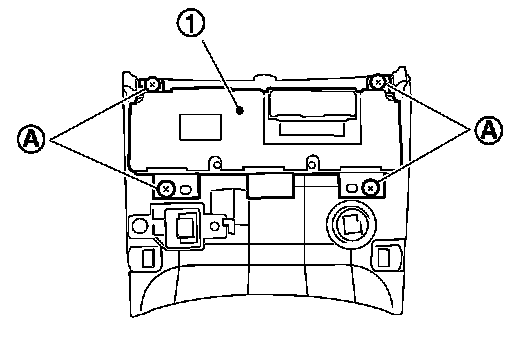

1.Remove cluster lid D. Exploded View.

2.Remove mounting screws (A), and then remove A/C control (1).

INSTALLATION

Installation is basically the reverse order of removal.
