Foot Position Setting Trimmer




INSPECTION AND ADJUSTMENT

Foot Position Setting Trimmer


DESCRIPTION

Wind distribution ratio in FOOT mode can be set.
1.Set fan control dial to OFF.
2.Turn ignition switch ON.
3.Set in self-diagnosis mode as per the following. Press intake switch for at least 5 seconds within 10 seconds after starting engine (ignition switch is turned ON.).
4.Set fan control dial to AUTO.

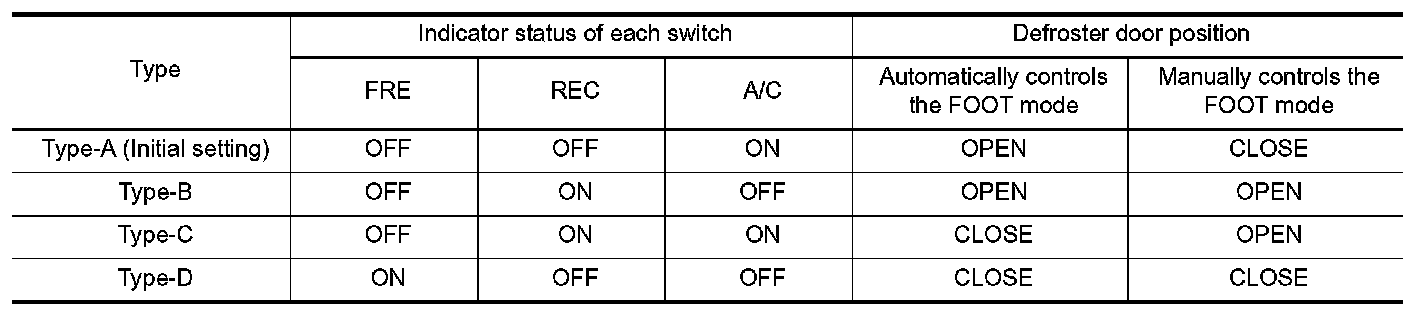

5.Press intake switch as desired.





NOTE:
When battery cable is disconnected or battery voltage is below 9 V, memory function is canceled. Memory function set becomes that of initial condition.
