Secondary Speed Sensor




ON-VEHICLE SERVICE

Secondary Speed Sensor (MR20DE)

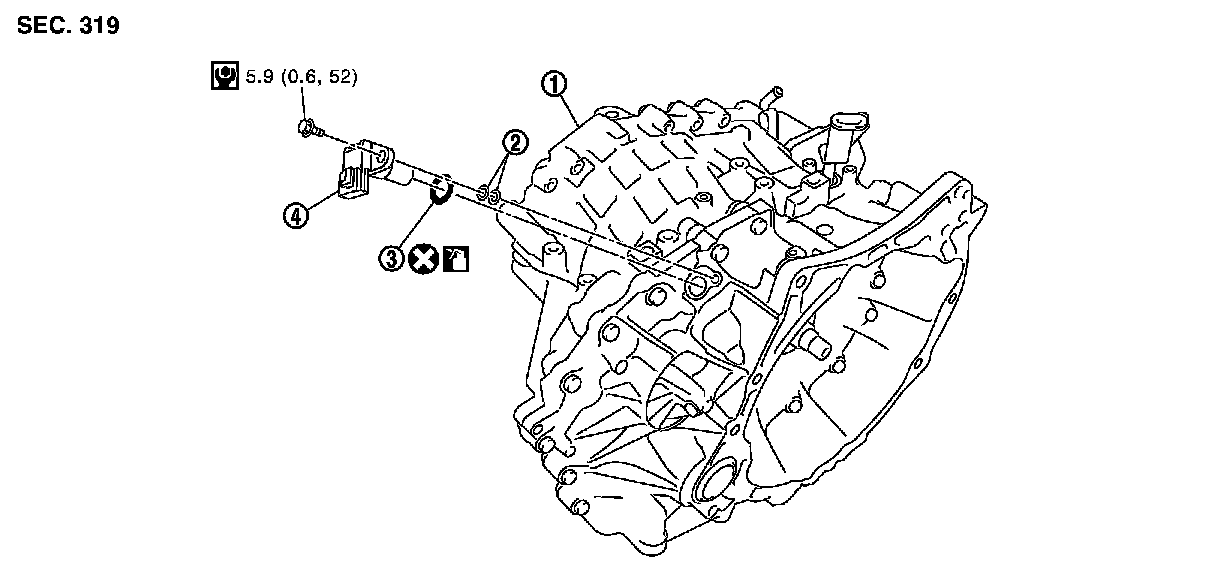

COMPONENTS












REMOVAL AND INSTALLATION

Removal
1.Remove the air cleaner and air duct (inlet). Removal And Installation.
2.Remove the air duct/battery tray. Component.
3.Disconnect secondary speed sensor connector.
4.Remove secondary speed sensor.
Installation
Installation is in the reverse order of removal.

CAUTION:
- Do not reuse O-ring.
- Apply CVT fluid to O-ring.
- Insert the shims.
- After installation is complete, check for CVT fluid leakage and CVT fluid level. Procedures.
