Secondary Speed Sensor




ON-VEHICLE SERVICE

Secondary Speed Sensor (QR25DE)

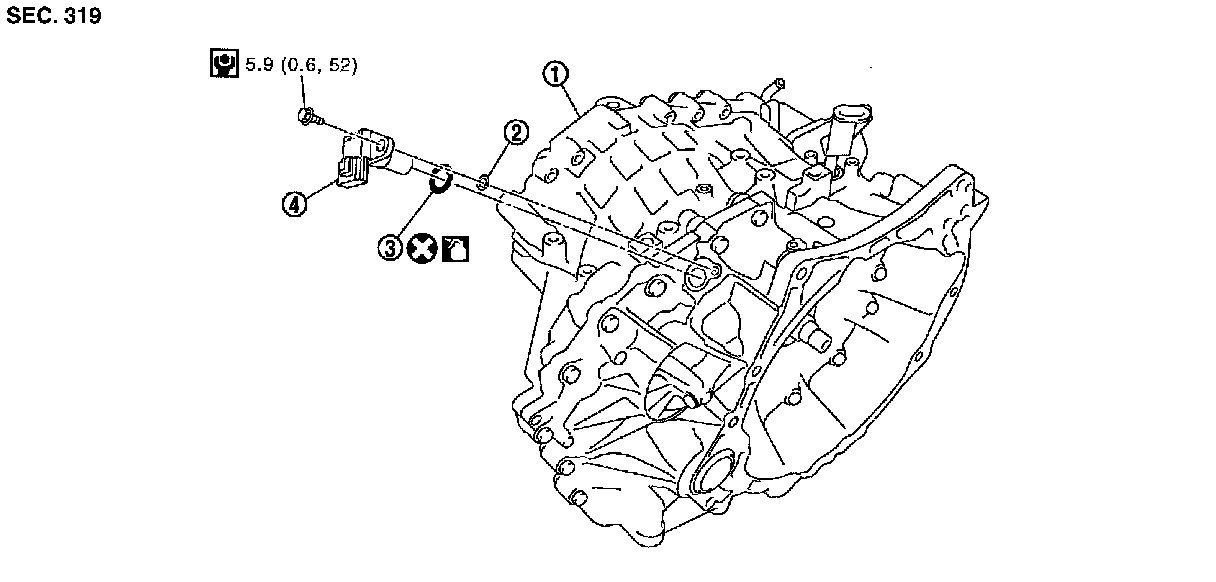

COMPONENTS












REMOVAL AND INSTALLATION

Removal
1.Remove the air cleaner and air duct assembly. Service and Repair.
2.Disconnect the secondary speed sensor connector.
3.Remove the secondary speed sensor.
Installation
Installation is in the reverse order of removal.

CAUTION:
- Do not reuse O-ring.
- Apply CVT fluid to O-ring.
- Insert the shim.
- After installation is complete, check for CVT fluid leakage and CVT fluid level. Procedures.
