Ignition Switch Position Check

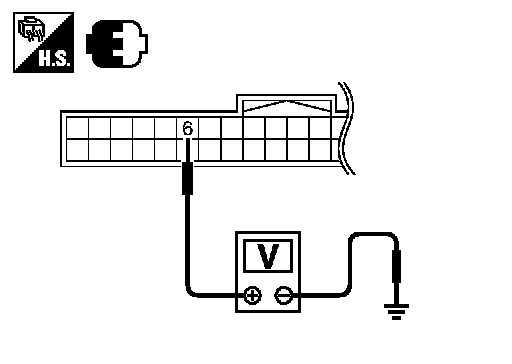

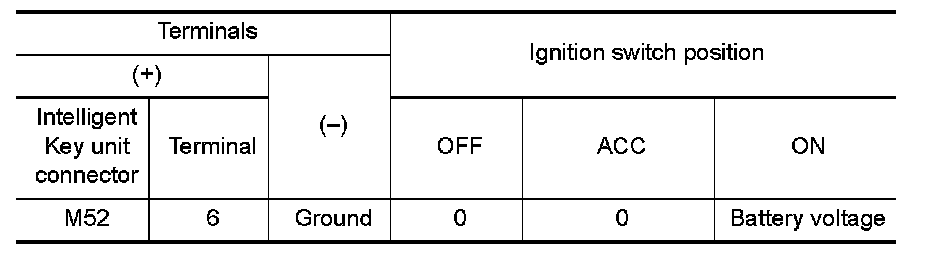

INTELLIGENT KEY SYSTEMIgnition Switch Position Check 1. CHECK IGNITION POWER SUPPLY Check voltage between Intelligent Key unit connector and ground.
OK or NG
OK- Ignition power supply is OK.
NG-Check the following.
- Intelligent Key unit power supply circuit.
- 10A fuse [No. 2, located in the fuse block (J/B)]
