Key Switch (Insert) Check

REMOTE KEYLESS ENTRY SYSTEM

Key Switch (Insert) Check


1. CHECK KEY SWITCH INPUT SIGNAL

With CONSULT
Check key switch "KEY ON SW" in DATA MONITOR mode with CONSULT. Scan Tool Testing and Procedures .
- When key is inserted into ignition key cylinder:
KEY ON SW: ON

- When key is removed from ignition key cylinder:
KEY ON SW: OFF

Without CONSULT

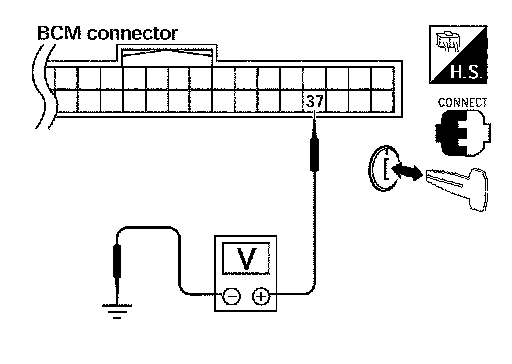

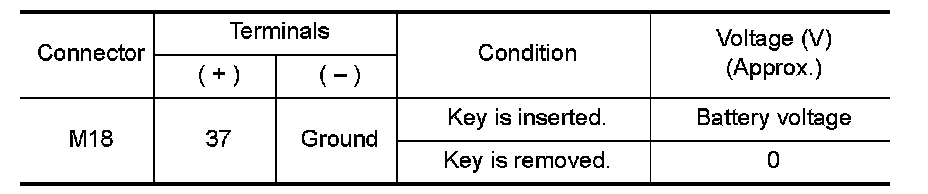

Check voltage between BCM connector and ground.





OK or NG
OK- Key switch circuit is OK.
NG-1- GO TO 2 (with Intelligent Key).
NG-2- GO TO 3 (without Intelligent Key).






2. CHECK KEY SWITCH (WITH INTELLIGENT KEY)

1.Turn ignition switch OFF.
2.Disconnect key switch and ignition knob switch connector.

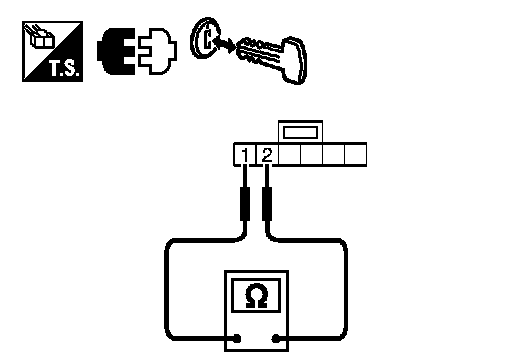

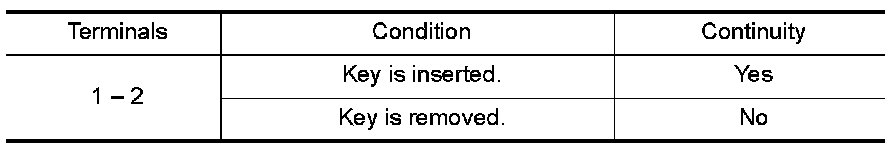

3.Check key switch.





OK or NG
OK-Check the following.
- 10A fuse (No. 31, located in fuse and fusible link block)





- Harness for open or short between key switch and ignition knob switch and fuse
- Harness for open or short between BCM and key switch and ignition knob switch
NG- Replace key switch and ignition knob switch.

3. CHECK KEY SWITCH (WITHOUT INTELLIGENT KEY)

1.Turn ignition switch OFF.
2.Disconnect key switch and key lock solenoid connector.
3.Check key switch.





OK or NG
OK-Check the following.
- 10A fuse [No. 10, located in fuse block (J/B)]
- Harness for open or short between key switch and key lock solenoid and fuse





- Harness for open or short between BCM and key switch and key lock solenoid
NG- Replace key switch and key lock solenoid.
