Engine Controls - MIL ON/DTC's P050A/P050E: Overview

Classification: EC11-034A

Reference: NTB11-105A

Date: December 14, 2011

2012 VERSA; MIL ON WITH P050A AND P050E, COLD START CONTROL

This bulletin has been amended to correct the model year in the title. No other changes have been made to the body of the bulletin. Discard all previous copies.

APPLIED VEHICLE(S): 2012 Versa (N17)

IF YOU CONFIRM:

The MIL is ON with DTC P050A and/or P050E (Cold Start Control) stored in the ECM.

ACTION:

1. Refer to step 6 in the SERVICE PROCEDURE to confirm this bulletin applies to the vehicle you are working on.

2. If this bulletin applies, reprogram the ECM.

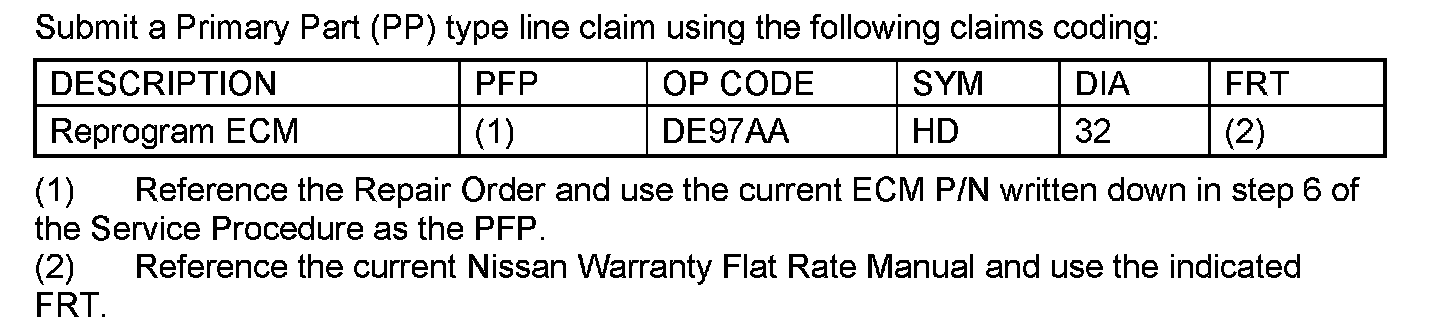

CLAIMS INFORMATION

IMPORTANT:
The purpose of ACTION (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire SERVICE PROCEDURE as it contains information that is essential to successfully completing this repair.
