Removal And Installation




TCM

Removal and Installation


REMOVAL


CAUTION:
- Never impact on TCM when removing or installing TCM.
- When replacing TCM and transaxle assembly as a set, replace transaxle assembly first and then replace TCM. Refer to "Description" Description.
1.Disconnect the battery cable from the negative terminal.

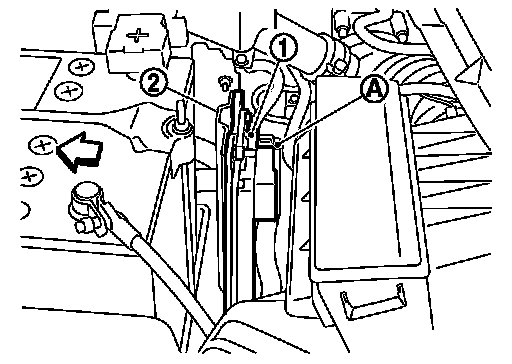

2.Disconnect TCM connector (A).

White arrow indicates : Vehicle front

3.Remove TCM (1) from battery bracket (2).

INSTALLATION

Install in the reverse order of removal.
