CONSULT Function




DIAGNOSIS SYSTEM (TCM)

CONSULT Function (TRANSMISSION)


FUNCTION

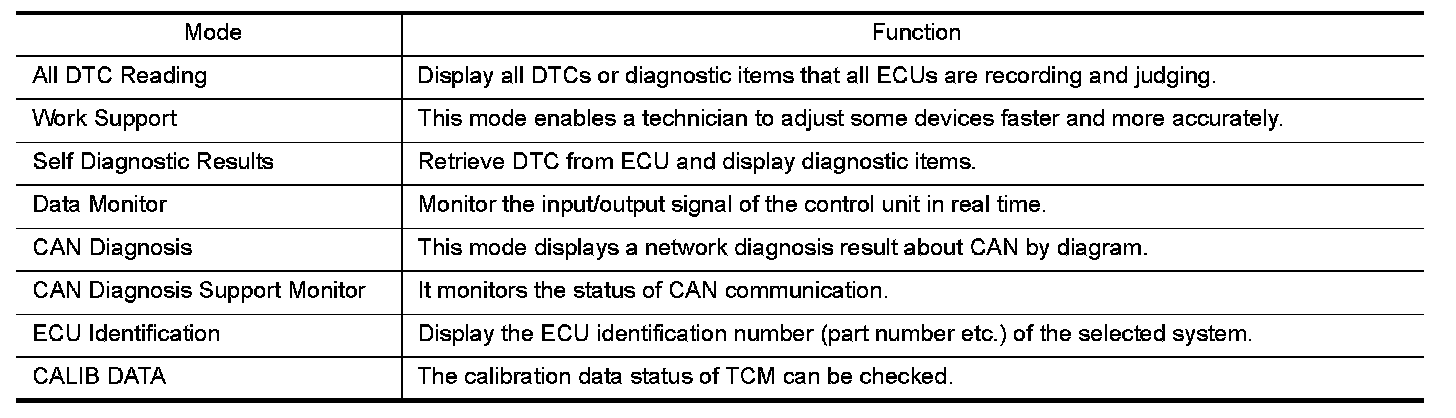

CONSULT can display each diagnostic item using the diagnostic test modes shown following.






WORK SUPPORT MODE

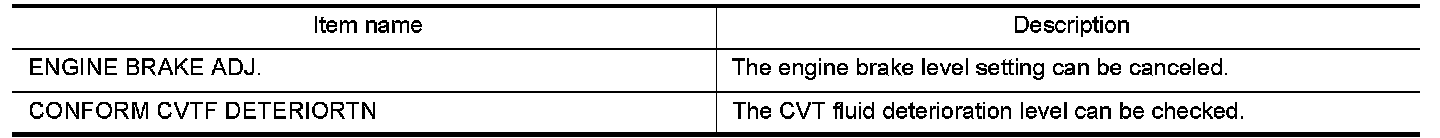

Display Item List





Engine Brake Adjustment

"ENGINE BRAKE LEVEL"
0: Initial set value (Engine brake level control is activated)
OFF: Engine brake level control is deactivated.

CAUTION:
Mode of "+1", "0", "1", "2", "OFF" can be selected by touching "UP"or "DOWN" on CONSULT
screen. However, do not select mode other than "0" and "OFF". Selecting "+1" or "1" or "2" is selected, that may cause irregular driveability.

Check CVT Fluid Deterioration Date

"CVTF DETERIORATION DATE"
210000 or more: It is necessary to change CVT fluid.
Less than 210000: It is not necessary to change CVT fluid.

CAUTION:
Touch "CLEAR" after changing CVT fluid, and then erase "CVTF DETERIORATION DATE".

SELF-DIAGNOSTIC RESULT MODE

Display Items List
Refer to "DTC Index" Testing and Inspection.

DATA MONITOR MODE

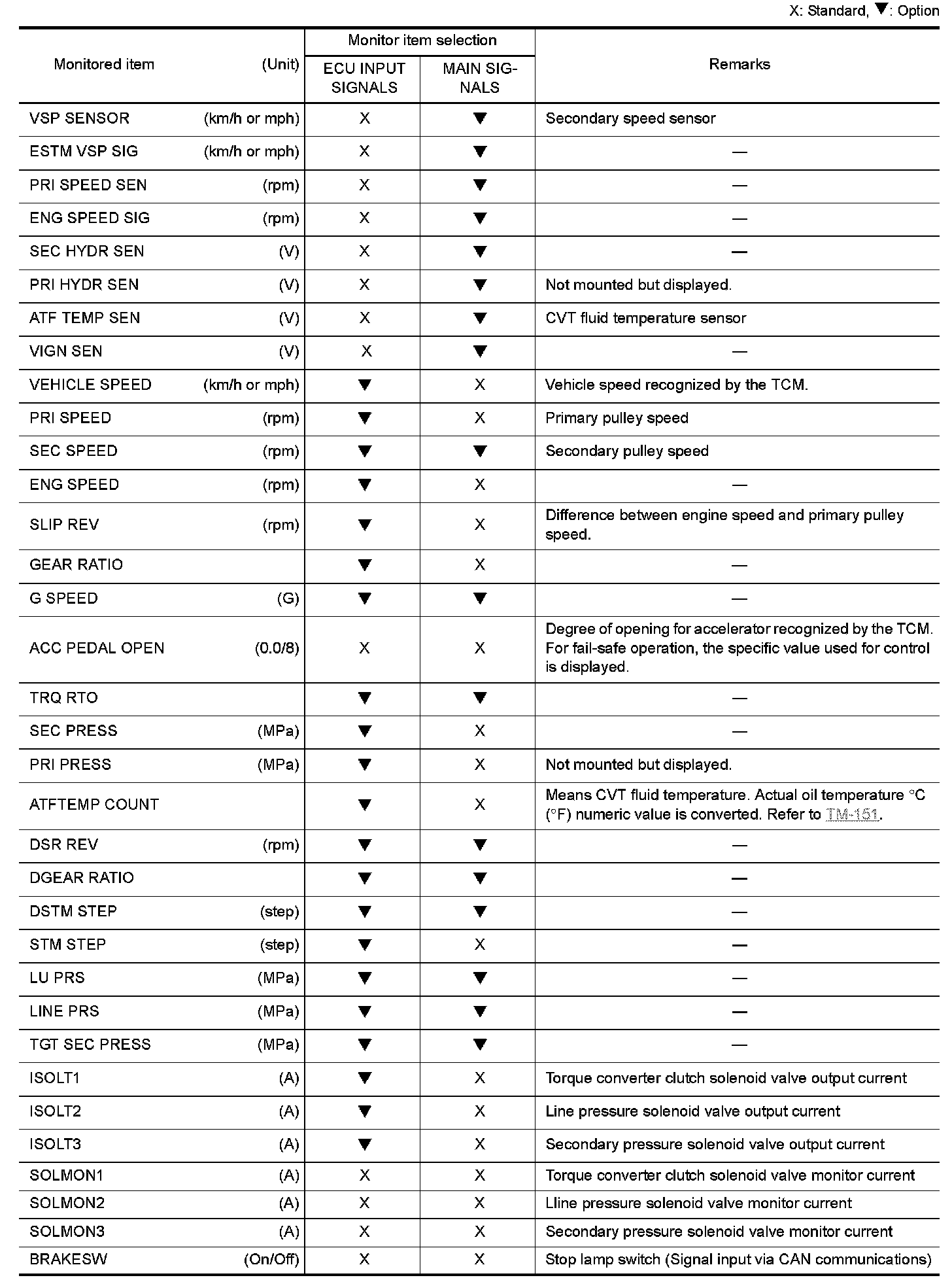

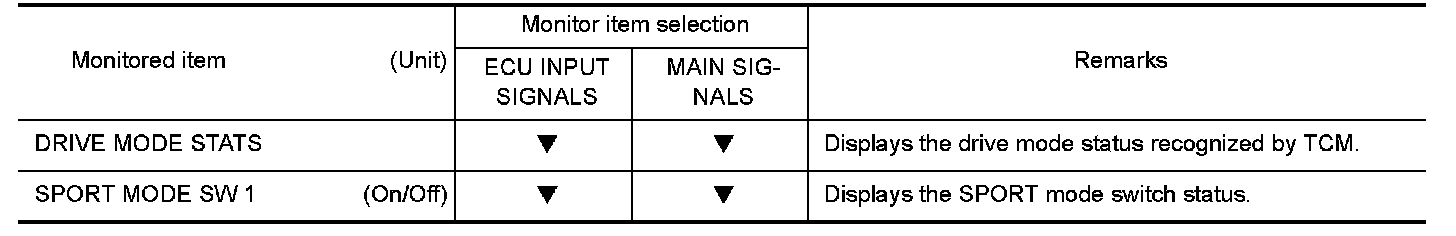

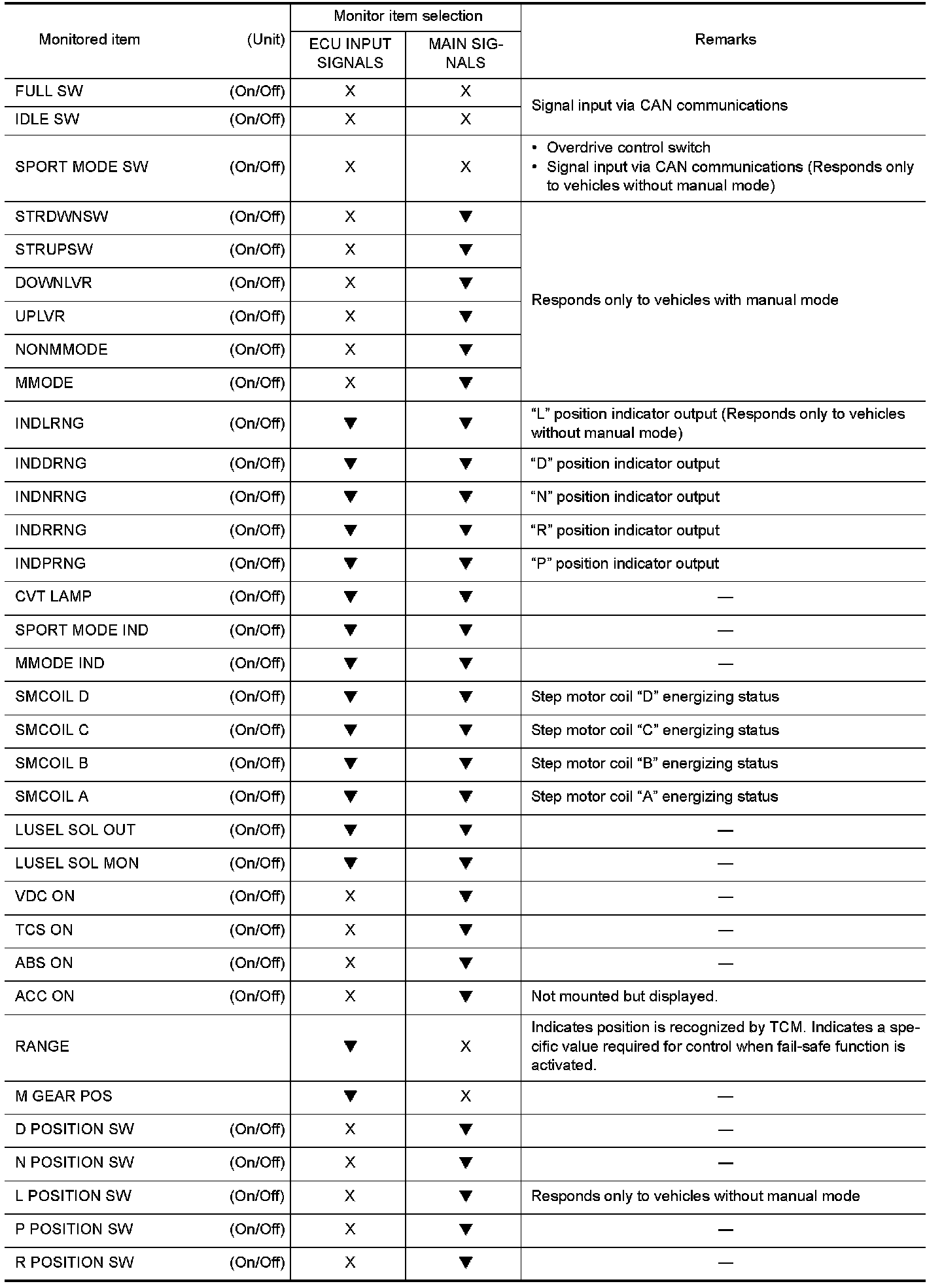

Display Items List
NOTE:
The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.
X: Standard, : Option
