Installation

Brake Components:

- Install backing plate to axle assembly.
- Install hub and bearing assembly to rear axle. Hub and Bearing Assembly
- Install parking brake cable to backing plate.
- Install brake pipe to wheel cylinder. Wheel Cylinder

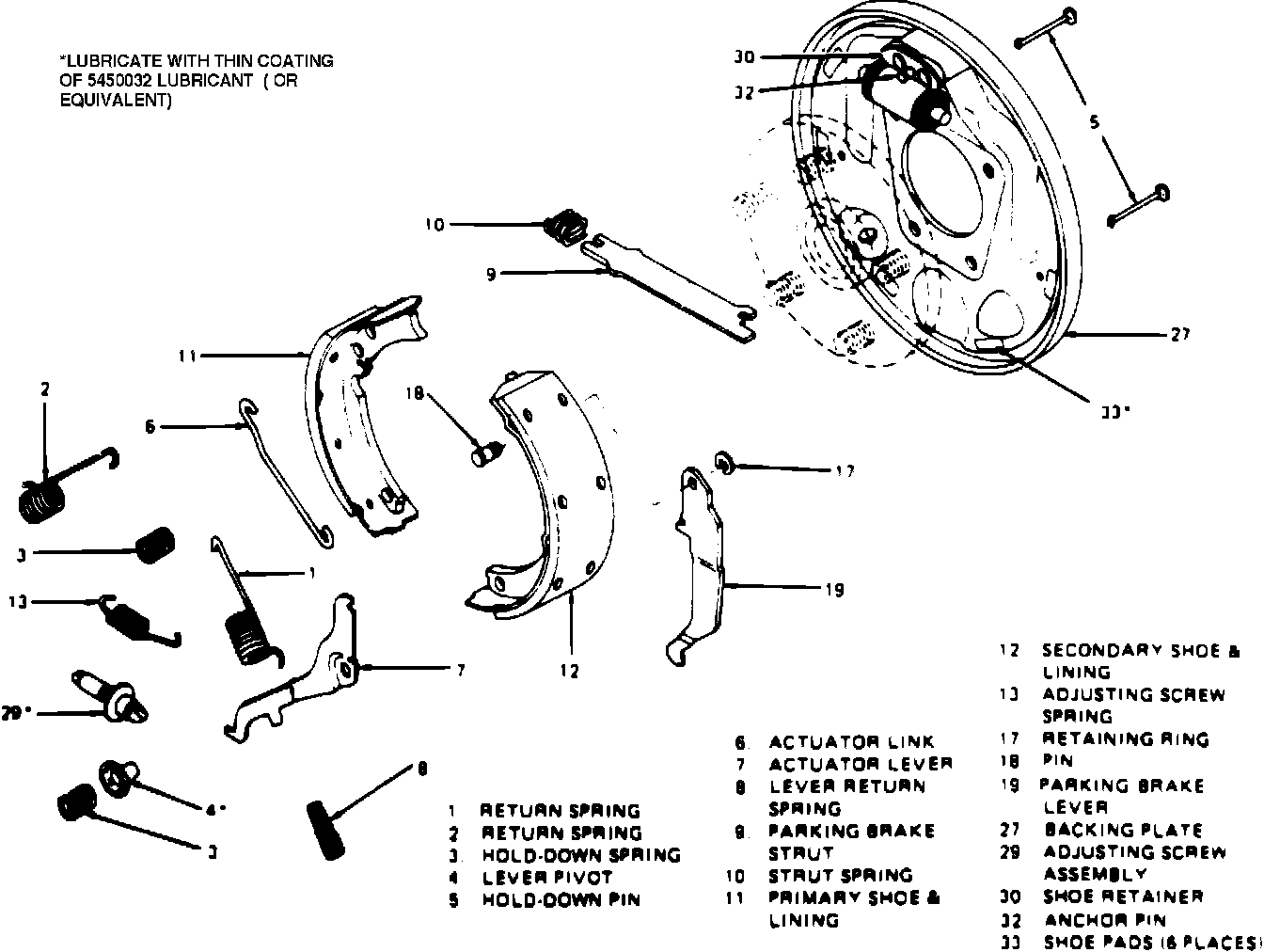

- Install brake components. Brake Drum Brake Shoe
- Bleed the brake hydraulic system. Service and Repair
- Adjust rear brake assembly. Adjustments
- Adjust parking brake. Parking Brake System
