Assembly

For additonal information see Notes, Warnings and Hints. Fundamentals and Basics

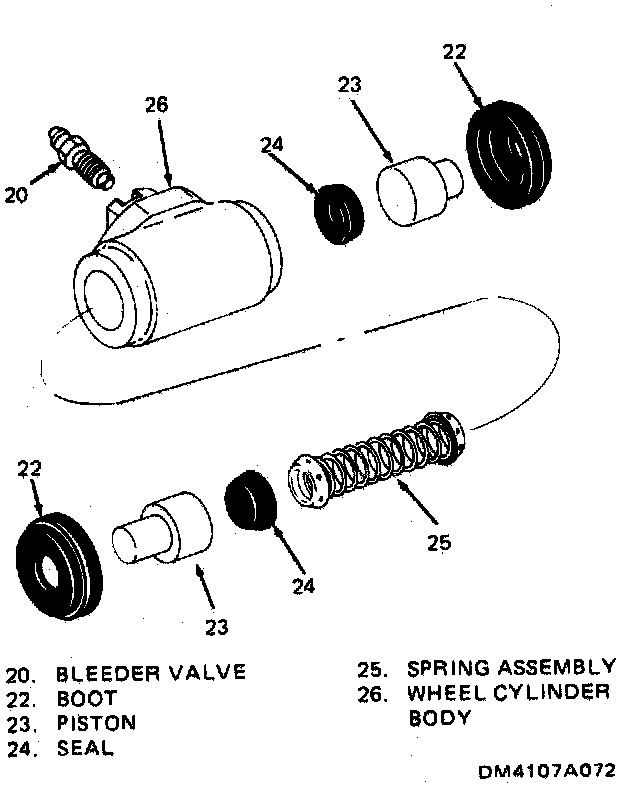

Wheel Cylinder Assembly:

- Clean all parts in clean denatured alcohol and dry with compressed air.
- Ensure hands are clean before proceeding with assembly. Lubricate cylinder wall and new seals with clean brake fluid.
- Install bleeder valve and torque to 7 Nm (65 in. lb.).
- Install spring assembly, seals, pistons, and boots.
