Without Air Conditioning

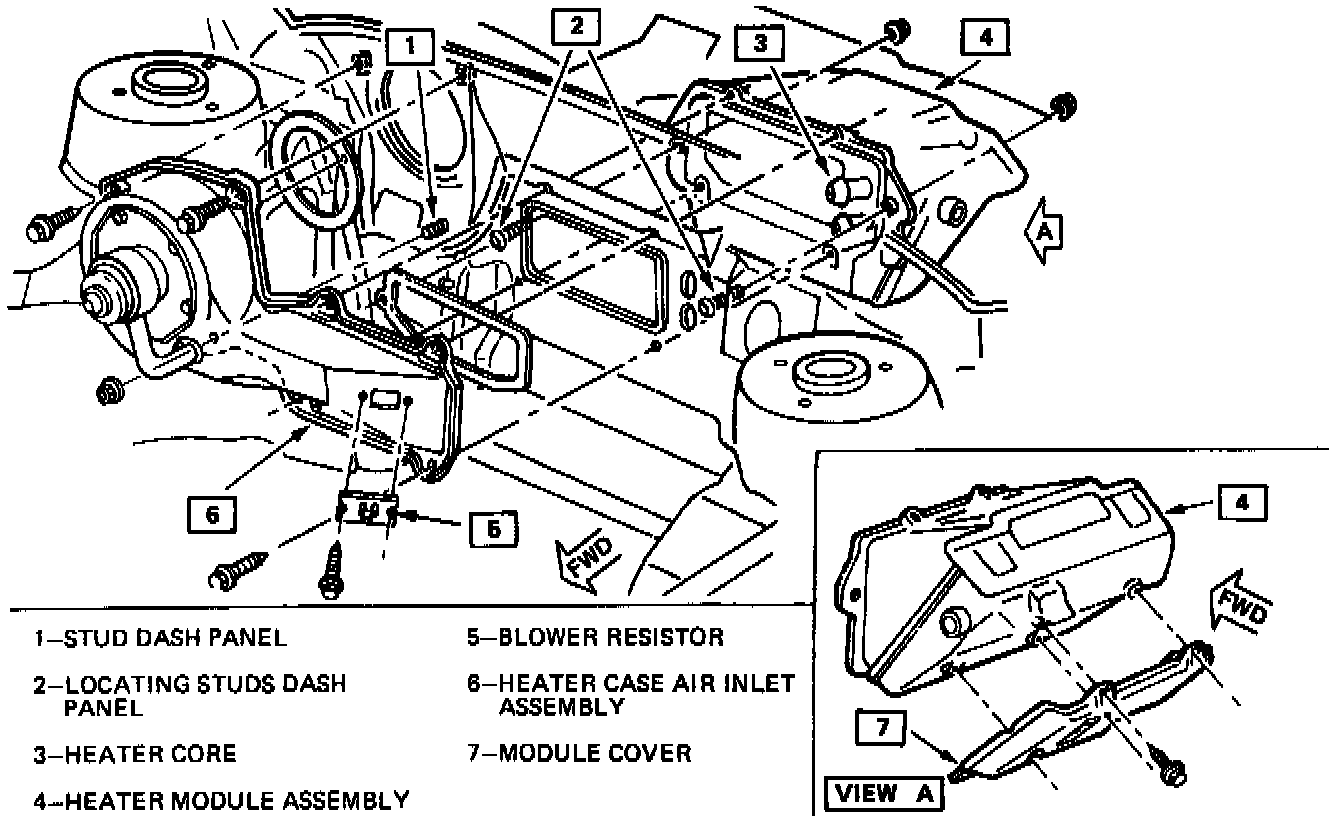

Exploded View Of Heater Module:

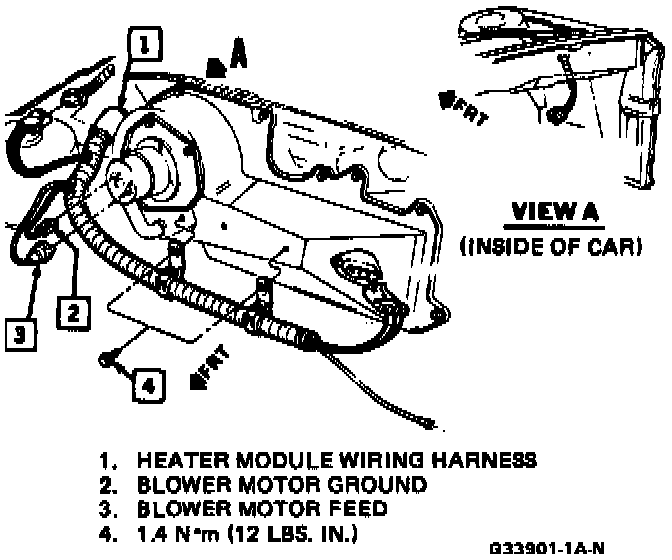

Heater Wiring:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Electrical connections, blower motor and ground strap.
3. Blower motor.

INSTALL OR CONNECT
1. Blower motor.
2. Electrical connections, blower motor and ground strap.
3. Negative battery cable.
